Android 12(S) 图像显示系统 – SurfaceFlinger 之 VSync – 中篇(十七)



必读:

Android 12(S) 图像显示系统 - 开篇




1 前言

这一篇文章,将继续讲解有关VSync的知识,前一篇文章 Android 12(S) 图像显示系统 - SurfaceFlinger之VSync-上篇(十六)中,主要是分析了SurfaceFlinger启动后VSync的一些初始化流程,以及vsync events的分发逻辑。

vsync events汇集到了两个地方:

1. MessageQueue::vsyncCallback  ==> VSYNC-sf

2. EventThread::onVSyncEvent  ==> VSYNC-app  & VSYNC-appSf

本篇中,将从一个简单的demo出发,来具体分析,vsync events是如何传递到  ==> 真正需要的地方



2 可以监测vsync event的应用

2.1 代码位置

代码存放到了GitHub,自取哦

https://github.com/yrzroger/DisplayEventTracker



2.2 如何使用

1. 下载代码放到android源码目录下

2. 执行 mm 编译得到可执行档 DisplayEventTracker

3. 将 DisplayEventTracker,adb push 到测试板的 /system/bin/ 目录下

4. 在console下执行 DisplayEventTracker -h,可以查看简单的命令说明

usage: DisplayEventTracker [options] ------------------------------------ options --------------------------------------------- [-i] vsync rate(default:1) [-h] help input 'r' to call requestNextVsync or input 'q' to exit when running ------------------------------------------------------------------------------------------

5. 示例命令

DisplayEventTracker          // 默认vsync rate = 1, 每个vsync到来时都会收到该event DisplayEventTracker -i 3     //表示vsync rate = 3, 每3个vsync才会通知一次 DisplayEventTracker -i 0     //除非调用requestNextVsync,否则不会收到vsync event,此时可以输入‘r’来调用requestNextVsync



2.3 执行结果展示

我的测试板默认的屏幕刷新率是60Hz,一个VSync间隔是16.67ms

结果一:默认setVsyncRate(1),每一个vsync event都会都到,可以看结果Vsync period大约是16.68ms

root:/ $ DisplayEventTracker Vsync received: count=149 Vsync received: count=150       16.687281 ms (59.925879 Hz) Vsync received: count=151       16.687281 ms (59.925879 Hz) Vsync received: count=152       16.687281 ms (59.925879 Hz) Vsync received: count=153       16.687281 ms (59.925879 Hz) Vsync received: count=154       16.687281 ms (59.925879 Hz) Vsync received: count=155       16.687281 ms (59.925879 Hz)

结果二:setVsyncRate(6),每间隔6个vsync events才投递一次

root:/ $ DisplayEventTracker -i 6 Vsync received: count=540 Vsync received: count=546       100.102455 ms (9.989765 Hz) Vsync received: count=552       100.102455 ms (9.989765 Hz) Vsync received: count=558       100.102455 ms (9.989765 Hz) Vsync received: count=564       100.102455 ms (9.989765 Hz) Vsync received: count=570       100.102455 ms (9.989765 Hz) Vsync received: count=576       100.102455 ms (9.989765 Hz) Vsync received: count=582       100.102455 ms (9.989765 Hz)

结果三:setVsyncRate(0),每次调用requestNextVsync()后才收到一次vsync event

root:/ $ DisplayEventTracker -i 6 130|RealtekStark:/ $ DisplayEventTracker -i 0 r Vsync received: count=797 r Vsync received: count=801       583.896606 ms (1.712632 Hz) r Vsync received: count=803       583.900635 ms (1.712620 Hz) r Vsync received: count=805       633.949219 ms (1.577413 Hz) r Vsync received: count=807       2002.051880 ms (0.499488 Hz) r Vsync received: count=809       1951.946533 ms (0.512309 Hz)



3 示例Demo源码解析

3.1 DisplayEventTracker类的定义

DisplayEventTracker定义很简单,继承自Thread,这意味着它可以开启一个独立的新线程,并在新线程中执行threadLoop()中的处理逻辑。

class DisplayEventTracker : public Thread { public:     explicit DisplayEventTracker(int vsyncRate); // 构造函数     virtual ~DisplayEventTracker(); // 析构函数      void requestNextVsync(); // 请求下一个 vsync event  private:     virtual bool        threadLoop();     virtual status_t    readyToRun();     void processDisplayEvents();       // Display event handling     class DisplayEventCallback; // LooperCallback的实现类      std::unique_ptr<DisplayEventReceiver> mDisplayEventReceiver; // 接收 display events的核心成员     sp<Looper> mLooper;     int mVsyncRate; // 投递 vsync events的间隔、频率 };



3.2 DisplayEventTracker::readyToRun完成一些初始化设置,设置监听和回调

status_t DisplayEventTracker::readyToRun() {     // Register a display event receiver     // To receive ModeChanged and/or FrameRateOverrides events specify this in the constructor.     mDisplayEventReceiver = std::make_unique<DisplayEventReceiver>(); // 创建 DisplayEventReceiver 对象     status_t status = mDisplayEventReceiver->initCheck(); // 检查 DisplayEventReceiver 初始化成功     if(status != NO_ERROR)         printf("Initialization of DisplayEventReceiver failed with status: %d", status);      mLooper->addFd(mDisplayEventReceiver->getFd(), 0, Looper::EVENT_INPUT, // 添加待监测的fd,并设置回调 DisplayEventCallback()             new DisplayEventCallback(), mDisplayEventReceiver.get()); //mDisplayEventReceiver.get()指针作为回调时传递给回调方法的数据      // setVsyncRate() sets the Event::VSync delivery rate.      // A value of 1 returns every Event::VSync.     // A value of 2 returns every other event, etc...     // a value of 0 returns no event unless  requestNextVsync() has been called.     mDisplayEventReceiver->setVsyncRate(mVsyncRate); // 设置投递 vsync event的频率          return NO_ERROR; }



3.3 新线程开启,DisplayEventTracker::threadLoop中等待事件发生

bool DisplayEventTracker::threadLoop() {     processDisplayEvents();     return true; }  void DisplayEventTracker::processDisplayEvents() {     // This will poll mDisplayEventReceiver and if there are new events it'll call     // displayEventCallback synchronously.     mLooper->pollOnce(-1);// 阻塞等待事件发生 }

threadLooper返回true,所以会反复执行。




上面的逻辑就是典型的 Android Native Looper 机制,不熟悉的可以参见文章:

Android Native -- Message/Handler/Looper机制(原理篇)

Android Native -- Message/Handler/Looper机制(应用篇)




3.4 vsync event到来时,回调 handleEvent

class DisplayEventTracker::DisplayEventCallback : public LooperCallback {     nsecs_t oldTimeStamp; // 记录前一个vsync的时间 public:     DisplayEventCallback(): oldTimeStamp(0) {}      int handleEvent(int /* fd */, int /*events*/, void* data) {         DisplayEventReceiver* displayEventReceiver = (DisplayEventReceiver*)data;         constexpr int kBufferSize = 100;         DisplayEventReceiver::Event buffer[kBufferSize];         ssize_t numEvents;         do {             numEvents = displayEventReceiver->getEvents(buffer, kBufferSize); // 获取事件             for (size_t i = 0; i < static_cast<size_t>(numEvents); i++) {                 const auto& event = buffer[i];                 if (event.header.type == DisplayEventReceiver::DISPLAY_EVENT_HOTPLUG) { // 热插拔事件                     printf("Hotplug received: %sn", event.hotplug.connected?"connected":"disconnected");                 }                  if(event.header.type == DisplayEventReceiver::DISPLAY_EVENT_VSYNC) { // vsync 事件                     printf("Vsync received: count=%dt", event.vsync.count); // 打印计数                     if (oldTimeStamp) {                         float t = float(event.header.timestamp - oldTimeStamp) / s2ns(1);                         printf("%f ms (%f Hz)n", t*1000, 1.0/t); //打印 vsync 事件间隔                     } else {                         printf("n");                     }                     oldTimeStamp = event.header.timestamp; // 记录事件                 }                  if(event.header.type == DisplayEventReceiver::DISPLAY_EVENT_MODE_CHANGE) { // 模式变化事件                     printf("Mode change receivedn");                 }                              }         } while (numEvents > 0);          return 1;  // keep the callback     } };




小结:

demo的整体流程是非常简单的,本质就是通过Looper去监测DisplayEventReceiver::getFd()中的fd,当fd上有事件发生时,就会回调到我们设置的函数。然后就可以从DisplayEventReceiver中getEvents获取事件,判断事件类型进行对应处理了

DisplayEventReceiver由是个啥东东?它为什么可以收到vsync event呢?莫急,稍后分析




4 DisplayEventReceiver相关原理分析

DisplayEventReceiver创建并注册与SurfaceFlinger的事件连接。可用来监测VSync、HotPlug、ModeChange、FrameRateOverride事件。

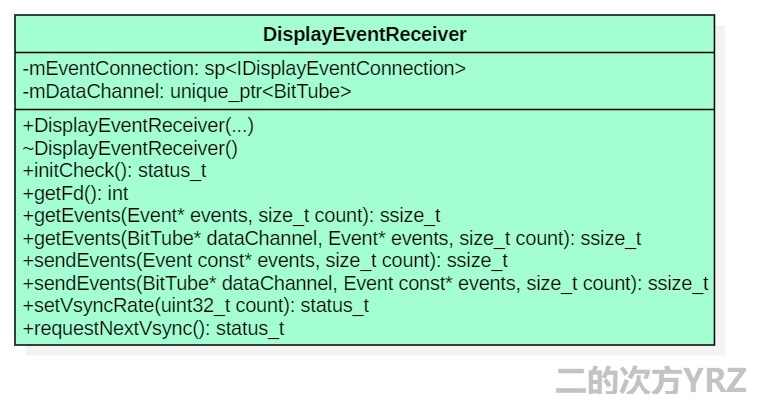

4.1 类定义

Android 12(S) 图像显示系统 - SurfaceFlinger 之 VSync - 中篇(十七)

4.2 主要方法解释

DisplayEventReceiver构造函数

可以根据需求来指定VsyncSource,并设置EventRegistrationFlags来决定是否接收ModeChanged和FrameRateOverrides事件。

[/frameworks/native/libs/gui/include/gui/ISurfaceComposer.h] enum VsyncSource {     eVsyncSourceApp = 0,     eVsyncSourceSurfaceFlinger = 1 };  enum class EventRegistration {     modeChanged = 1 << 0,     frameRateOverride = 1 << 1, };



status_t setVsyncRate(uint32_t count)

设置投递vsync events的频率,设置1代表每个vsync event均被投递,设置2代表每隔一个投递一次,依次类推 ...

设置0代表只有调用requestNextVsync()后才会投递一次vsync event



status_t requestNextVsync()

请求下一个vsync event,在vsync rate大于0的时候,这个函数调用无效



int getFd() const

获取用于接收事件的文件描述符



ssize_t getEvents(Event* events, size_t count)

当监测到有事件发生时,通过它获取具体的事件列表,函数返回值就是事件的数量



ssize_t sendEvents(Event const* events, size_t count)

发送事件,函数返回值就是事件的数量

本文作者@二的次方  2022-04-27 发布于博客园

4.3 DisplayEventReceiver工作原理,事件是怎么传递过来的?

先看看它的构造函数的具体实现

[/frameworks/native/libs/gui/DisplayEventReceiver.cpp] DisplayEventReceiver::DisplayEventReceiver(         ISurfaceComposer::VsyncSource vsyncSource,         ISurfaceComposer::EventRegistrationFlags eventRegistration) {     sp<ISurfaceComposer> sf(ComposerService::getComposerService()); // 获取SurfaceFLinger服务     if (sf != nullptr) {         mEventConnection = sf->createDisplayEventConnection(vsyncSource, eventRegistration); // 创建远程事件连接         if (mEventConnection != nullptr) {             mDataChannel = std::make_unique<gui::BitTube>();             mEventConnection->stealReceiveChannel(mDataChannel.get()); // 传递 BitTube         }     } }

核心的处理应该是createDisplayEventConnectionstealReceiveChannel,下面分别看看这两个操作具体做了啥子



4.3.1 SurfaceFlinger::createDisplayEventConnection

这个方法通过Binder IPC跨进程,一路飞奔,直到SurfaceFlinger核心服务 SurfaceFlinger::createDisplayEventConnection

[/frameworks/native/services/surfaceflinger/SurfaceFlinger.cpp] sp<IDisplayEventConnection> SurfaceFlinger::createDisplayEventConnection(         ISurfaceComposer::VsyncSource vsyncSource,         ISurfaceComposer::EventRegistrationFlags eventRegistration) {     const auto& handle = // 判断选哪个 vsyncSource             vsyncSource == eVsyncSourceSurfaceFlinger ? mSfConnectionHandle : mAppConnectionHandle;     // 创建 DisplayEventConnection     return mScheduler->createDisplayEventConnection(handle, eventRegistration); }



mSfConnectionHandlemAppConnectionHandle是在initScheduler时创建的scheduler::ConnectionHandle对象,前一篇文章中有分析过。

通过这两个handle可以在Scheduler::mConnections中找到和他们分别对应的Connection,即

    // Stores EventThread associated with a given VSyncSource, and an initial EventThreadConnection.     struct Connection {         sp<EventThreadConnection> connection;         std::unique_ptr<EventThread> thread;     };



4.3.2 Scheduler::createDisplayEventConnection

先看代码

[/frameworks/native/services/surfaceflinger/Scheduler/Scheduler.cpp] sp<IDisplayEventConnection> Scheduler::createDisplayEventConnection(         ConnectionHandle handle, ISurfaceComposer::EventRegistrationFlags eventRegistration) {     std::lock_guard<std::mutex> lock(mConnectionsLock);     RETURN_IF_INVALID_HANDLE(handle, nullptr);     return createConnectionInternal(mConnections[handle].thread.get(), eventRegistration); }

根据handle,从Scheduler::mConnections取出对应的EventThread对象,继续调用 Scheduler::createConnectionInternal

[/frameworks/native/services/surfaceflinger/Scheduler/Scheduler.cpp] sp<EventThreadConnection> Scheduler::createConnectionInternal(         EventThread* eventThread, ISurfaceComposer::EventRegistrationFlags eventRegistration) {     return eventThread->createEventConnection([&] { resync(); }, eventRegistration); }

继续去调用了 EventThread::createEventConnection

[/frameworks/native/services/surfaceflinger/Scheduler/EventThread.cpp] sp<EventThreadConnection> EventThread::createEventConnection(         ResyncCallback resyncCallback,         ISurfaceComposer::EventRegistrationFlags eventRegistration) const {     return new EventThreadConnection(const_cast<EventThread*>(this),                                      IPCThreadState::self()->getCallingUid(),                                      std::move(resyncCallback), eventRegistration); }

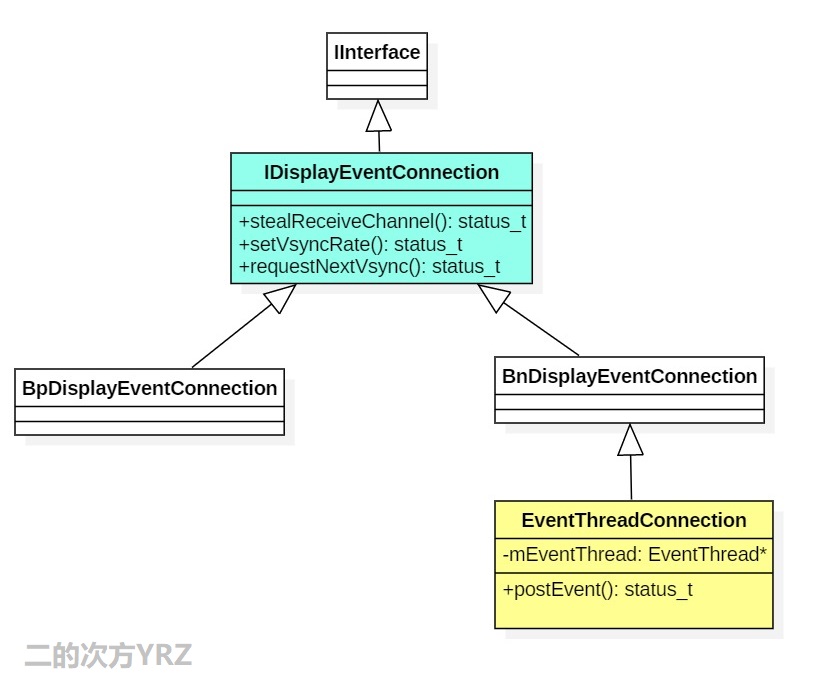

创建了一个EventThreadConnection对象,并返回给调用者。如下图继承关系,保证了DisplayEventReceiver可以取得EventThreadConnection对象的远程代理,保存在成员sp<IDisplayEventConnection> mEventConnection

Android 12(S) 图像显示系统 - SurfaceFlinger 之 VSync - 中篇(十七)

流程继续,创建EventThreadConnection对象,第一次被引用时会进到onFirstRef中进行注册

void EventThreadConnection::onFirstRef() {     // NOTE: mEventThread doesn't hold a strong reference on us     mEventThread->registerDisplayEventConnection(this); }

再转到EventThread::registerDisplayEventConnection中,就是把这个connecttion保存到EventThread::mDisplayEventConnections

status_t EventThread::registerDisplayEventConnection(const sp<EventThreadConnection>& connection) {     std::lock_guard<std::mutex> lock(mMutex);      // this should never happen     auto it = std::find(mDisplayEventConnections.cbegin(),             mDisplayEventConnections.cend(), connection);     if (it != mDisplayEventConnections.cend()) {  // 判断是否已经存在         ALOGW("DisplayEventConnection %p already exists", connection.get());         mCondition.notify_all();         return ALREADY_EXISTS;     }      mDisplayEventConnections.push_back(connection);// 保存到 mDisplayEventConnections 这个vector数组中     mCondition.notify_all();     return NO_ERROR; }



DisplayEventReceiver已经和SurfaceFlinger服务端的Scheduler建立了关系,再回到DisplayEventReceiver的构造函数接着分析下面的操作



[/frameworks/native/libs/gui/DisplayEventReceiver.cpp] // DisplayEventReceiver构造函数 mDataChannel = std::make_unique<gui::BitTube>(); mEventConnection->stealReceiveChannel(mDataChannel.get()); // 传递跨进程数据传递的对象 BitTube



下一步创建了一个BitTube对象,然后调用了mEventConnection->stealReceiveChannel这个方法会走到

[/frameworks/native/services/surfaceflinger/Scheduler/EventThread.cpp ] status_t EventThreadConnection::stealReceiveChannel(gui::BitTube* outChannel) {     outChannel->setReceiveFd(mChannel.moveReceiveFd());// resets this BitTube's receive file descriptor to receiveFd     outChannel->setSendFd(base::unique_fd(dup(mChannel.getSendFd()))); // resets this BitTube's send file descriptor to sendFd     return NO_ERROR; }



这使用到BitTube的跨进程传递数据的方式,基本原理可以参考:Android 12(S) 图像显示系统 - 基础知识之 BitTube




到这里,我们可以清晰的看到,DisplayEventReceiver与SurfaceFlinger建立起来了一条跨进程传递事件的通道:BitTube中封装的socketpair (receive fd  & send fd)




4.4 事件的传递、分发

通信线路已建立,接下来就要把事件经过这条道路向外传递了。

上一篇文章中曾讲到过

收到vsync events的汇集到了两个地方:

1. MessageQueue::vsyncCallback  ==> VSYNC-sf

2. EventThread::onVSyncEvent  ==> VSYNC-app  & VSYNC-appSf

我们这里只看EventThread::onVSyncEvent

[/frameworks/native/services/surfaceflinger/Scheduler/EventThread.cpp] void EventThread::onVSyncEvent(nsecs_t timestamp, nsecs_t expectedVSyncTimestamp,                                nsecs_t deadlineTimestamp) {     ...     // 包装为 DisplayEventReceiver::Event对象,存入 mPendingEvents 尾部     mPendingEvents.push_back(makeVSync(mVSyncState->displayId, timestamp, ++mVSyncState->count,                                        expectedVSyncTimestamp, deadlineTimestamp, vsyncId));     mCondition.notify_all(); }

EventThread收到 vsync event回调事件后,放入mPendingEvents这个待处理的事件队列中,然后唤醒等待的处理线程,即在EventThread::threadMain

[/frameworks/native/services/surfaceflinger/Scheduler/EventThread.cpp] void EventThread::threadMain(std::unique_lock<std::mutex>& lock) {     // using DisplayEventConsumers = std::vector<sp<EventThreadConnection>>;     DisplayEventConsumers consumers; // consumers是一个EventThreadConnection数组      while (mState != State::Quit) {         std::optional<DisplayEventReceiver::Event> event;          // Determine next event to dispatch.         if (!mPendingEvents.empty()) {             event = mPendingEvents.front(); // 取出 mPendingEvents 头部第一个待处理的 event             mPendingEvents.pop_front();     // 删除开头元素              switch (event->header.type) { // 判断是什么类型的事件                 case DisplayEventReceiver::DISPLAY_EVENT_HOTPLUG: // 热插拔事件                     if (event->hotplug.connected && !mVSyncState) {                         mVSyncState.emplace(event->header.displayId);                     } else if (!event->hotplug.connected && mVSyncState &&                                mVSyncState->displayId == event->header.displayId) {                         mVSyncState.reset();                     }                     break;                  case DisplayEventReceiver::DISPLAY_EVENT_VSYNC: // VSYNC 事件                     if (mInterceptVSyncsCallback) {                          // mInterceptVSyncsCallback 是在SurfaceFlinger::initScheduler中createConnection时一路传递过来的                         // 这个回调会通知到SurfaceFlinger                         mInterceptVSyncsCallback(event->header.timestamp);                     }                     break;             }         }          bool vsyncRequested = false;          // Find connections that should consume this event.         auto it = mDisplayEventConnections.begin(); // mDisplayEventConnections 中保存了所有与这个EventThread建立的连接         while (it != mDisplayEventConnections.end()) { // 遍历所有Connection             if (const auto connection = it->promote()) {                 vsyncRequested |= connection->vsyncRequest != VSyncRequest::None;//是否请求vsync                  if (event && shouldConsumeEvent(*event, connection)) { // 判断是否需要分发事件通知这个connection                     consumers.push_back(connection);                 }                  ++it;             } else {                 it = mDisplayEventConnections.erase(it);             }         }          if (!consumers.empty()) {             dispatchEvent(*event, consumers);// 分发事件,最终是使用BitTube发送数据,通知connection             consumers.clear();         }          State nextState;         if (mVSyncState && vsyncRequested) {             // synthetic = True if VSYNC should be faked, e.g. when display is off. 屏幕关闭产生虚假的VSYNC             nextState = mVSyncState->synthetic ? State::SyntheticVSync : State::VSync;         } else {             ALOGW_IF(!mVSyncState, "Ignoring VSYNC request while display is disconnected");             nextState = State::Idle; // 进入Idle阻塞等待         }          if (mState != nextState) {             if (mState == State::VSync) {                 mVSyncSource->setVSyncEnabled(false); // 关闭 vsync             } else if (nextState == State::VSync) {                 mVSyncSource->setVSyncEnabled(true);  // 开启 vysnc ,作用于CallbackRepeater,循环去schedule next vsync             }              mState = nextState;         }          if (event) {             continue;         }          // Wait for event or client registration/request.         if (mState == State::Idle) {             mCondition.wait(lock);         } else {             // Generate a fake VSYNC after a long timeout in case the driver stalls. When the             // display is off, keep feeding clients at 60 Hz.             const std::chrono::nanoseconds timeout =                     mState == State::SyntheticVSync ? 16ms : 1000ms;             if (mCondition.wait_for(lock, timeout) == std::cv_status::timeout) {                 if (mState == State::VSync) {                     ALOGW("Faking VSYNC due to driver stall for thread %s", mThreadName);                     std::string debugInfo = "VsyncSource debug info:n";                     mVSyncSource->dump(debugInfo);                     // Log the debug info line-by-line to avoid logcat overflow                     auto pos = debugInfo.find('n');                     while (pos != std::string::npos) {                         ALOGW("%s", debugInfo.substr(0, pos).c_str());                         debugInfo = debugInfo.substr(pos + 1);                         pos = debugInfo.find('n');                     }                 }                  LOG_FATAL_IF(!mVSyncState);                 const auto now = systemTime(SYSTEM_TIME_MONOTONIC);                 const auto deadlineTimestamp = now + timeout.count();                 const auto expectedVSyncTime = deadlineTimestamp + timeout.count();                 const int64_t vsyncId = [&] {                     if (mTokenManager != nullptr) {                         return mTokenManager->generateTokenForPredictions(                                 {now, deadlineTimestamp, expectedVSyncTime});                     }                     return FrameTimelineInfo::INVALID_VSYNC_ID;                 }();                 mPendingEvents.push_back(makeVSync(mVSyncState->displayId, now,                                                    ++mVSyncState->count, expectedVSyncTime,                                                    deadlineTimestamp, vsyncId));             }         }     } }

EventThread::threadMain代码逻辑上也比较清晰,主体就是从mPendingEvents这个待处理的事件队列中取出event,让后经过判断处理后通知到对应的connections

本文作者@二的次方  2022-04-27 发布于博客园

简单说说



EventThread::shouldConsumeEvent

这个方法就如同它的名字,判断是否去消费这个事件,说白了就是判断这个事件是否要分发通知给指定的connection。

参数event就是当前发生的,准备分发的事件

参数connection就是客户端注册到EventThread中的connection,其中就包装了用于跨进程通信的BitTube对象

对于VSYNC事件,在这个函数中实现了setVsyncRate中设置的分发频率

[ /frameworks/native/services/surfaceflinger/Scheduler/EventThread.cpp] bool EventThread::shouldConsumeEvent(const DisplayEventReceiver::Event& event,                                      const sp<EventThreadConnection>& connection) const {     const auto throttleVsync = [&] {         return mThrottleVsyncCallback &&                 mThrottleVsyncCallback(event.vsync.expectedVSyncTimestamp, connection->mOwnerUid);     };      switch (event.header.type) {         case DisplayEventReceiver::DISPLAY_EVENT_HOTPLUG: // 热插拔事件             return true;          case DisplayEventReceiver::DISPLAY_EVENT_MODE_CHANGE: {// mode change事件             return connection->mEventRegistration.test( //接收者设置了modeChanged标志才会分发                     ISurfaceComposer::EventRegistration::modeChanged);         }          case DisplayEventReceiver::DISPLAY_EVENT_VSYNC: // VSYNC事件             switch (connection->vsyncRequest) { // setVsyncRate设置分发的频率                 case VSyncRequest::None: // rate==0,不分发                     return false;                 case VSyncRequest::SingleSuppressCallback:// requestNextVsync 有请求时case                     connection->vsyncRequest = VSyncRequest::None;                     return false;                 case VSyncRequest::Single: { // requestNextVsync 有请求时case                     if (throttleVsync()) {                         return false;                     }                     connection->vsyncRequest = VSyncRequest::SingleSuppressCallback;                     return true;                 }                 case VSyncRequest::Periodic: // rate==1,周期性,每个VSYNC事件都分发通知                     if (throttleVsync()) {                         return false;                     }                     return true;                 default:                     // We don't throttle vsync if the app set a vsync request rate                     // since there is no easy way to do that and this is a very                     // rare case                     // 根据setVsyncRate设置分发的频率,周期性的计数,每connection->vsyncRequest个分发一个                     return event.vsync.count % vsyncPeriod(connection->vsyncRequest) == 0;             }          case DisplayEventReceiver::DISPLAY_EVENT_FRAME_RATE_OVERRIDE:             [[fallthrough]];         case DisplayEventReceiver::DISPLAY_EVENT_FRAME_RATE_OVERRIDE_FLUSH: // frame rate override flush事件             return connection->mEventRegistration.test(// 判断接收者设置了frameRateOverride标志才会分发                     ISurfaceComposer::EventRegistration::frameRateOverride);          default:             return false;     } }



EventThread::dispatchEvent

当前面判断某一个事件应该分发出去后,接下来就是去实际把事件分发出去,通知到接收者了

最终的事件是通过调用EventThreadConnection::postEvent==> DisplayEventReceiver::sendEvents ==> gui::BitTube::sendObjects

BitTube跨进程通知到接收者

void EventThread::dispatchEvent(const DisplayEventReceiver::Event& event,                                 const DisplayEventConsumers& consumers) {     // 注意:using DisplayEventConsumers = std::vector<sp<EventThreadConnection>>;      // 从consumers数组中遍历EventThreadConnection     for (const auto& consumer : consumers) {         DisplayEventReceiver::Event copy = event;         if (event.header.type == DisplayEventReceiver::DISPLAY_EVENT_VSYNC) {             copy.vsync.frameInterval = mGetVsyncPeriodFunction(consumer->mOwnerUid);         }         switch (consumer->postEvent(copy)) { // postEvent分发事件==>EventThreadConnection::postEvent             ...         }     } }



DispSyncSource::setVSyncEnabled

这个方法去call mRegistration.schedule  == > VSyncCallbackRegistration::schedule 去安排下一次的Vsync events

大概如此,从而周期性的收到vsync events ,  不多讲了






经过上面流程的分析,事件通过BitTube::sendObjects跨进程通知到接收者,接收者通过监听BitTube::mReceiveFd,并在接收到事件时调用BitTube::recvObjects就可以取出事件,做后续处理了

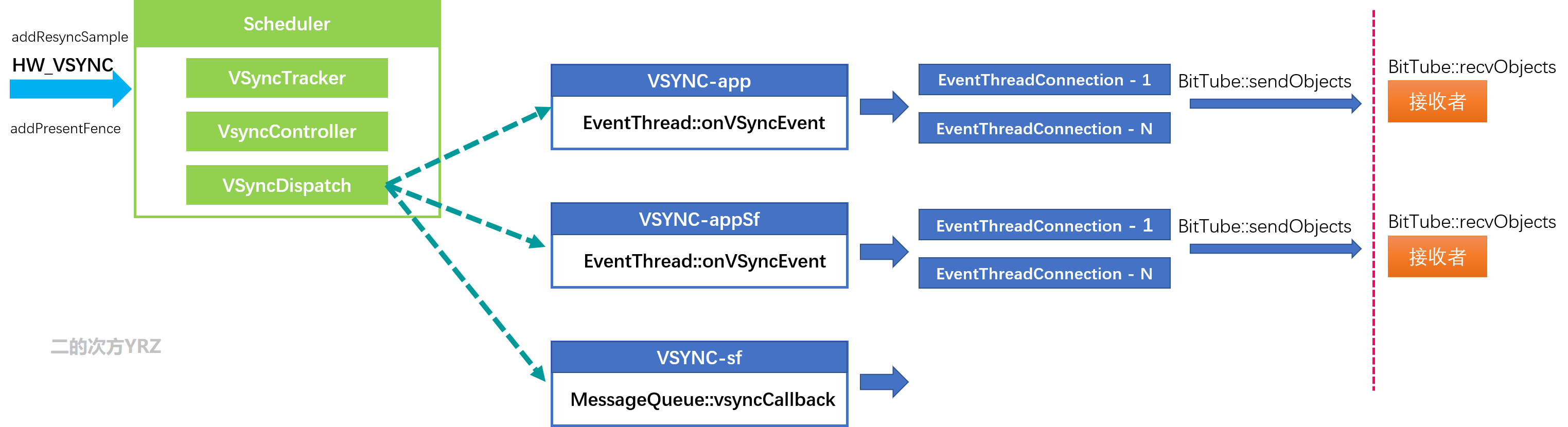

总结一个不是很准确的图,我也不知道该咋表达了,哈

Android 12(S) 图像显示系统 - SurfaceFlinger 之 VSync - 中篇(十七)
