商品中心—3.商品可采可补可售的技术文档

技术分享 1个月前 (06-12) 0 999+

关注

大纲

1.可采可补可售业务的数据库建模设计

2.定时同步可采商品

3.定时同步可补商品

4.定时同步可售商品

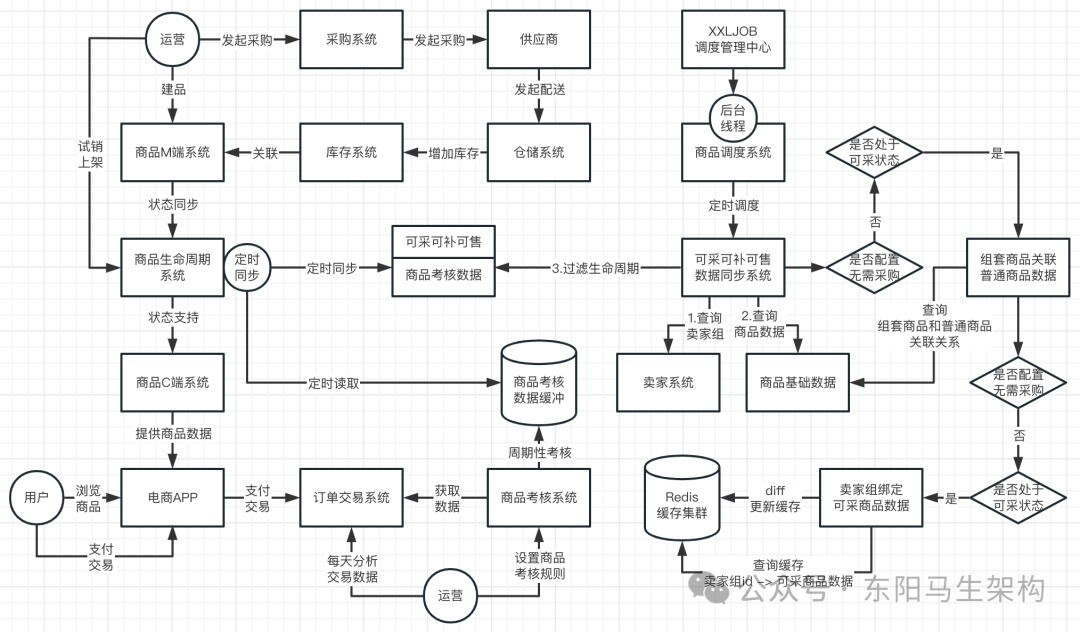

5.商品中心架构梳理



1.可采可补可售业务的数据库建模设计

(1)可采可补可售

(2)可采业务表

(3)可补业务表

(4)可售业务表

(5)基础配置表



(1)可采可补可售

可售：配置了卖家组(售卖区)的商品，在该卖家组下的区域是可售状态 可补：可售商品，微仓是否可补，指⼤仓向微仓补货 可采：可售商品，⼤仓是否可采，指⼤仓采购

(2)可采业务表

一.商品与卖家组关系表

二.组套商品与SKU关系表

三.商品ITEM表

四.商品SKU表

五.商品⽆需采购配置表



一.商品与卖家组关系表

CREATE TABLE `sku_seller_relation` (     `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主健',     `item_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'itemId',     `sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'skuId',     `seller_group_id` varchar(50) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '卖家组ID',     `seller_type` int(10) DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `relation_type` tinyint(3) DEFAULT '0' COMMENT '关系类型(1-可售，2-屏蔽)',     `del_flag` tinyint(1) DEFAULT '1' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',     PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8 COMMENT='商品与卖家组关系表';

二.组套商品与SKU关系表

CREATE TABLE `stack_sku_relation` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '售卖sku(组套商品)',     `stack_sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '普通商品skuId或原料商品skuId',     `stack_num` int(10) NOT NULL DEFAULT '0' COMMENT '数量',     `channel` tinyint(3) NOT NULL DEFAULT '0' COMMENT '渠道(1-每日⽣鲜、2-美团、3-饿了么、4-淘鲜达、5-招商银⾏)',     `seller_type` int(10) NOT NULL DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `features` varchar(500) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '扩展字段',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更改时间',     PRIMARY KEY (`id`)  ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='组套商品与SKU关系表';

三.商品ITEM表

CREATE TABLE `item_info` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `item_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '商品ID',     `item_name` varchar(255) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '商品名称',     `recommend` varchar(255) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '推荐语',     `item_type` int(10) NOT NULL DEFAULT '0' COMMENT '商品类型',     `channel` tinyint(3) NOT NULL DEFAULT '0' COMMENT '渠道(1-每日⽣鲜、2-美团、3-饿了么、4-淘鲜达、5-招商银⾏)',     `seller_type` int(10) NOT NULL DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `producing_area_id` int(10) NOT NULL DEFAULT '0' COMMENT '产地ID',     `item_status` int(10) NOT NULL DEFAULT '0' COMMENT '商品状态',     `brand_id` int(10) NOT NULL DEFAULT '0' COMMENT '品牌ID',     `shelf_life` int(10) NOT NULL DEFAULT '0' COMMENT '保质期(⼩时)',     `store_condition_type` int(10) NOT NULL DEFAULT '0' COMMENT '存储条件',     `category_id` int(10) NOT NULL DEFAULT '0' COMMENT '末级品类ID',     `first_category_id` int(10) NOT NULL DEFAULT '0' COMMENT '⼀级品类ID',     `second_category_id` int(10) NOT NULL DEFAULT '0' COMMENT '⼆级品类ID',     `third_category_id` int(10) NOT NULL DEFAULT '0' COMMENT '三级品类ID',     `item_specs_value` varchar(2048) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '规格值([{"颜⾊":"⾦⾊", "内存":"128g"},{"颜⾊":"银⾊", "内存":"256g"}])',     `features` varchar(500) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '扩展字段',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',     PRIMARY KEY (`id`)  ) ENGINE=InnoDB AUTO_INCREMENT=12 DEFAULT CHARSET=utf8 COMMENT='商品ITEM表';

四.商品SKU表

CREATE TABLE `sku_info` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'skuId',     `item_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'itemId',     `sku_name` varchar(255) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'sku名称',     `sku_type` int(10) NOT NULL DEFAULT '0' COMMENT 'sku类型(与item保持⼀致)',     `base_price` int(10) NOT NULL DEFAULT '0' COMMENT '商城价格(单位：分)',     `vip_price` int(10) NOT NULL DEFAULT '0' COMMENT '会员价格(单位：分)',     `sku_grade` int(10) NOT NULL DEFAULT '0' COMMENT '商品分级(ABC标签，运营归类处理)',     `channel` tinyint(3) NOT NULL DEFAULT '0' COMMENT '渠道(1-每日⽣鲜、2-美团、3-饿了么、4-淘鲜达、5-招商银⾏)',     `seller_type` int(10) NOT NULL DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `sku_specs_value` varchar(2048) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '规格值({"颜⾊":"⾦⾊", "内存":"128g"})',     `features` varchar(500) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '扩展字段',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更改时间',     PRIMARY KEY (`id`)  ) ENGINE=InnoDB AUTO_INCREMENT=15 DEFAULT CHARSET=utf8 COMMENT='商品SKU表';

五.商品⽆需采购配置表

CREATE TABLE `item_procurement_config` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `category_id` int(10) NOT NULL DEFAULT '0' COMMENT '品类ID',     `procurement_type` tinyint(1) NOT NULL DEFAULT '0' COMMENT '是否需要采购(1-需要，0-⽆需)',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更改时间',     PRIMARY KEY (`id`)  ) ENGINE=InnoDB AUTO_INCREMENT=15 DEFAULT CHARSET=utf8 COMMENT='商品⽆需采购配置表';

(3)可补业务表

一.商品ITEM表

二.组套商品与SKU关系表

三.商品与卖家组关系表

四.商品属性扩展表



一.商品ITEM表

CREATE TABLE `item_info` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `item_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '商品ID',     `item_name` varchar(255) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '商品名称',     `recommend` varchar(255) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '推荐语',     `item_type` int(10) NOT NULL DEFAULT '0' COMMENT '商品类型',     `channel` tinyint(3) NOT NULL DEFAULT '0' COMMENT '渠道(1-每日⽣鲜、2-美团、3-饿了么、4-淘鲜达、5-招商银⾏)',     `seller_type` int(10) NOT NULL DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `producing_area_id` int(10) NOT NULL DEFAULT '0' COMMENT '产地ID',     `item_status` int(10) NOT NULL DEFAULT '0' COMMENT '商品状态',     `brand_id` int(10) NOT NULL DEFAULT '0' COMMENT '品牌ID',     `shelf_life` int(10) NOT NULL DEFAULT '0' COMMENT '保质期(⼩时)',     `store_condition_type` int(10) NOT NULL DEFAULT '0' COMMENT '存储条件',     `category_id` int(10) NOT NULL DEFAULT '0' COMMENT '末级品类ID',     `first_category_id` int(10) NOT NULL DEFAULT '0' COMMENT '⼀级品类ID',     `second_category_id` int(10) NOT NULL DEFAULT '0' COMMENT '⼆级品类ID',     `third_category_id` int(10) NOT NULL DEFAULT '0' COMMENT '三级品类ID',     `item_specs_value` varchar(2048) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '规格值([{"颜⾊":"⾦⾊", "内存":"128g"},{"颜⾊":"银⾊", "内存":"256g"}])',     `features` varchar(500) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '扩展字段',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',     PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=12 DEFAULT CHARSET=utf8 COMMENT='商品ITEM表';

二.组套商品与SKU关系表

CREATE TABLE `stack_sku_relation` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '售卖sku(组套商品)',     `stack_sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '普通商品skuId或原料商品skuId',     `stack_num` int(10) NOT NULL DEFAULT '0' COMMENT '数量',     `channel` tinyint(3) NOT NULL DEFAULT '0' COMMENT '渠道(1-每日⽣鲜、2-美团、3-饿了么、4-淘鲜达、5-招商银⾏)',     `seller_type` int(10) NOT NULL DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `features` varchar(500) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '扩展字段',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更改时间',     PRIMARY KEY (`id`) ) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='组套商品与SKU关系表';

三.商品与卖家组关系表

CREATE TABLE `sku_seller_relation` (     `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主健',     `item_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'itemId',     `sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'skuId',     `seller_group_id` varchar(50) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '卖家组ID',     `seller_type` int(10) DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `relation_type` tinyint(3) DEFAULT '0' COMMENT '关系类型(1-可售，2-屏蔽)',     `del_flag` tinyint(1) DEFAULT '1' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',     PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8 COMMENT='商品与卖家组关系表';

四.商品属性扩展表

CREATE TABLE `attribute_extend` (     `id` int(10) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键',     `participate_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '参与ID(ITEM_ID或SKU_ID)',     `participate_type` int(10) NOT NULL DEFAULT '0' COMMENT '参与类型(1-ITEM，2-SKU)',     `attribute_content` varchar(2048) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '属性内容',     `feature` varchar(500) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '扩展字段',     `version_id` int(10) NOT NULL DEFAULT '0' COMMENT '版本号',     `del_flag` tinyint(1) NOT NULL DEFAULT '0' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) NOT NULL DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) NOT NULL DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',     PRIMARY KEY (`ID`)  ) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8 COMMENT='商品属性扩展表';

(4)可售业务表

一.商品与卖家组关系表

二.商品卖家库存关系表



一.商品与卖家组关系表

CREATE TABLE `sku_seller_relation` (     `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主健',     `item_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'itemId',     `sku_id` varchar(40) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT 'skuId',     `seller_group_id` varchar(50) CHARACTER SET utf8mb4 DEFAULT NULL COMMENT '卖家组ID',     `seller_type` int(10) DEFAULT '0' COMMENT '卖家类型(1-⾃营，2-POP)',     `relation_type` tinyint(3) DEFAULT '0' COMMENT '关系类型(1-可售，2-屏蔽)',     `del_flag` tinyint(1) DEFAULT '1' COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(10) DEFAULT '0' COMMENT '创建⼈',     `create_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '创建时间',     `update_user` int(10) DEFAULT '0' COMMENT '更新⼈',     `update_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',     PRIMARY KEY (`id`) ) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8 COMMENT='商品与卖家组关系表';

二.商品卖家库存关系表

CREATE TABLE `sku_stock_seller_relation` (     `id` int(10) UNSIGNED NOT NULL AUTO_INCREMENT,     `sku_id` varchar(40) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '商品ID',     `seller_type` tinyint(3) NULL DEFAULT NULL COMMENT '卖家类型(1-⾃营，2-POP)',     `seller_id` bigint(20) NULL DEFAULT NULL COMMENT '卖家ID',     `stock_num` bigint(20) NULL DEFAULT NULL COMMENT '库存数量',     `stock_unit` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '库存单位',     `del_flag` tinyint(1) NULL DEFAULT NULL COMMENT '删除标记(1-有效，0-删除)',     `create_user` int(11) NULL DEFAULT NULL COMMENT '创建⼈',     `create_time` datetime NULL DEFAULT NULL COMMENT '创建时间',     `update_user` int(11) NULL DEFAULT NULL COMMENT '更新⼈',     `update_time` datetime NULL DEFAULT NULL COMMENT '更新时间',     PRIMARY KEY (`id`) USING BTREE  ) ENGINE = InnoDB AUTO INCREMENT = 1 DEFAULT CHARSET=utf8 COMMENT='商品卖家库存关系表';

(5)基础配置表

leaf⾃增序列表leaf_alloc

CREATE TABLE `leaf_alloc` (     `biz_tag` varchar(128) NOT NULL DEFAULT '' COMMENT '业务key',     `max_id` bigint(20) NOT NULL DEFAULT '1' COMMENT '当前已经分配了的最⼤id',     `step` int(11) NOT NULL COMMENT '初始步⻓，也是动态调整的最⼩步⻓',     `description` varchar(256) DEFAULT NULL COMMENT '业务key的描述',     `update_time` timestamp NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '数据库维护的更新时间',     PRIMARY KEY (`biz_tag`)  ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COMMENT='leaf⾃增序列表';



2.定时同步可采商品

(1)定时调度任务定时同步可采商品

(2)定时同步可采商品时的卖家组数据分页查询

(3)过滤无效的卖家组与查询卖家组支持的可售商品

(4)卖家组支持的可售商品十万级数据量查询实现

(5)根据卖家组支持的可售商品查询商品信息

(6)对可售商品进行无需采购以及生命周期过滤

(7)对卖家组支持的可售商品进行过滤组套商品

(8)将过滤后的商品数据与卖家组进行关联

(9)读取缓存与刷入缓存的逻辑

(10)卖家组支持的可采商品与缓存的diff逻辑

(11)基于DB的分段发号器组件



(1)定时调度任务定时同步可采商品

使用场景：定时任务调度，可以按不同的卖家类型分任务进⾏执⾏同步结果。

@Component public class RecoverableJobHandler {     @DubboReference(version = "1.0.0")     private RecoverableApi recoverableApi;      @XxlJob("syncRecoverableProduct")     public void syncAvailableProduct(RecoverableRequest request) {         XxlJobHelper.log("sync available product job starting...");         JsonResult result = recoverableApi.syncRecoverableProduct(request);         XxlJobHelper.log("sync available product job end, result:{}", result);     } }  @DubboService(version = "1.0.0", interfaceClass = RecoverableApi.class, retries = 0) public class RecoverableApiImpl implements RecoverableApi {     @Autowired     private RecoverableService recoverableService;      //同步可采商品     @Override     public JsonResult syncRecoverableProduct(RecoverableRequest request) {         try {             return recoverableService.syncRecoverableProduct(request);         } catch (ProductBizException e) {             log.error("biz error: request={}", JSON.toJSONString(request), e);             return JsonResult.buildError(e.getErrorCode(), e.getErrorMsg());         } catch (Exception e) {             log.error("system error: request={}", JSON.toJSONString(request), e);             return JsonResult.buildError(e.getMessage());         }     } }  //商品可采业务实现类 @Service public class RecoverableServiceImpl implements RecoverableService {     ...     //同步可采的数据入缓存     @Override     public JsonResult syncRecoverableProduct(RecoverableRequest request) {         Integer pageNo = 1;         //获取卖家类型对应的卖家组信息         List<SellerGroupResponse> sellerGroupResponses = querySellerGroupList(pageNo, request.getSellerGroupType());         while (!CollectionUtils.isEmpty(sellerGroupResponses)) {             //1.过滤卖家组的非有效状态信息数据             List<SellerGroupResponse> sellerGroupResponseList = sellerGroupFilter(sellerGroupResponses);             //2.根据卖家组获取卖家支持的可售商品列表             List<SkuSellerRelationDO> sellerRelationDOList = queryAvailableProduct(sellerGroupResponseList);             //3.查询商品信息，并过滤非自营的商品             List<ProductDetailDO> productDetailDOList = queryProductDetailList(sellerRelationDOList);             //4.进行item级别的商品过滤(无需采购和生命周期)             List<ProductDetailDO> itemFilterList = itemFilter(productDetailDOList);             //5.进行组套商品的商品过滤(无需采购和生命周期)             List<ProductDetailDO> suitFilterList = suitFilter(itemFilterList);             //6.将详情的商品sku信息绑定到卖家上             List<ProductSellerRelationBO> productSellerRelationBOList = buildBinding(sellerRelationDOList, suitFilterList);             //7.读取历史的缓存信息，对已经存在的缓存进行diff处理并刷入缓存             diffRecoverableCache(productSellerRelationBOList, sellerGroupResponses);             pageNo++;             sellerGroupResponses = querySellerGroupList(pageNo, request.getSellerGroupType());         }         return JsonResult.buildSuccess();     }     ... }

具体实现：

一.调⽤查询卖家信息接⼝，传⼊卖家类型，返回对应的卖家组信息列表 二.过滤掉返回的卖家组列表中⾮有效状态的卖家组 三.根据卖家组ID列表获取这些卖家组所⽀持售卖的商品 四.根据商品sku表sku_info查询得到⾃营类型的商品 五.根据商品⽆需采购配置表获取得到不需要采购的品类信息 六.根据sku列表批量查询⽣命周期的可采结果，并过滤不可采的商品信息  七.进⾏组套商品验证，先通过sku批量查询组套商品与sku关系表 获取得到每个sku下的原料以及普通商品信息 对每个商品进⾏⽆需采购以及⽣命周期的验证 当组合商品下的sku都满⾜条件则可补，否则过滤 组套商品与SKU关系表是stack_sku_relation  八.对已经存在的缓存数据和当前这次同步处理后的数据进⾏差集处理，发⽣变化的数据才需要刷⼊缓存(新增的或者⽆效的数据) 九.构建缓存模型，对可补的商品数据进⾏缓存，缓存的模型对象为：key为'前缀标识+卖家组ID'，value为'可采sku+品类'

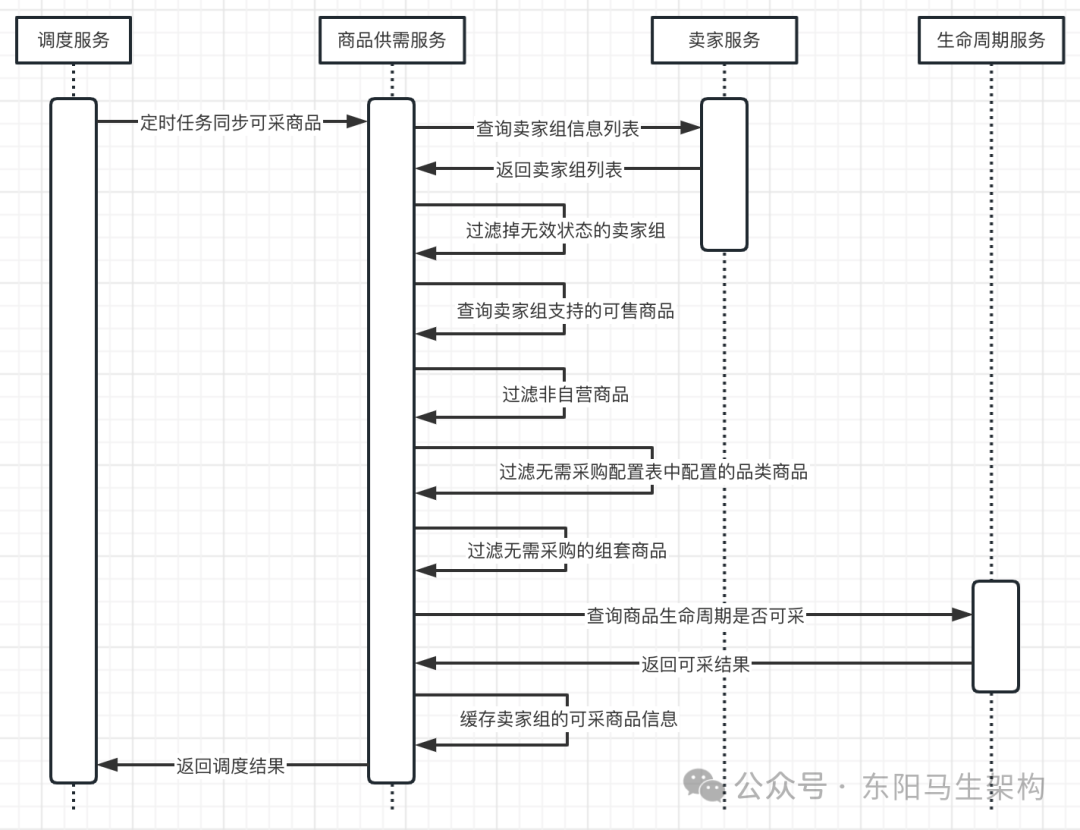

时序图：

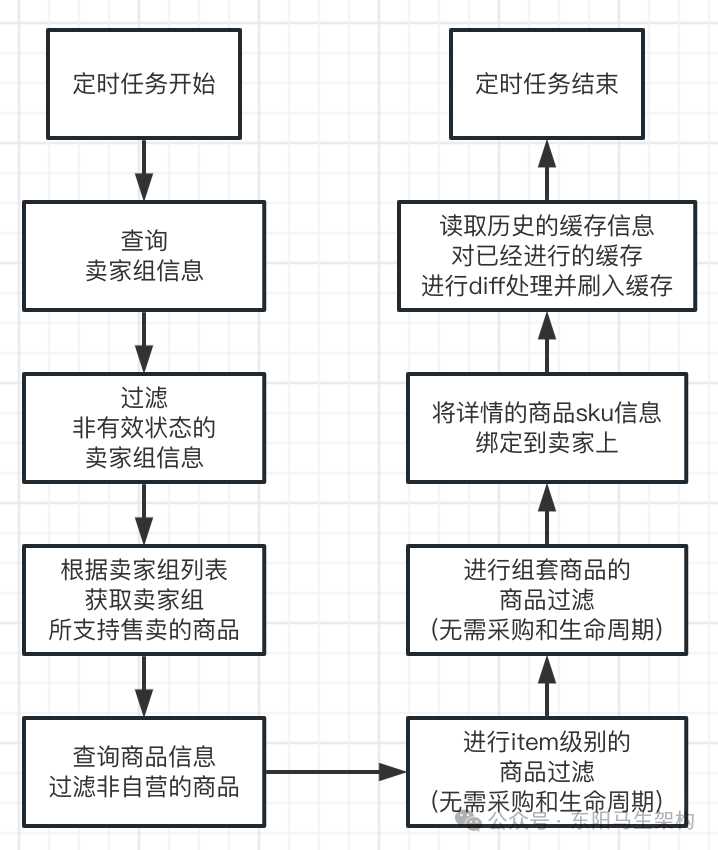

流程图：

(2)定时同步可采商品时的卖家组数据分页查询

@Service public class RecoverableServiceImpl implements RecoverableService {     @Autowired     private SellerRemote sellerRemote;     ...      //分页查询卖家组(售卖区)信息     public List<SellerGroupResponse> querySellerGroupList(Integer pageNo, Integer sellerGroupType) {         PageResult<SellerGroupResponse> sellerGroupPage = sellerRemote.getSellerGroupList(pageNo, CompensationConstants.SELLER_PAGE_SIZE, sellerGroupType);         return sellerGroupPage.getContent();     }      //同步可采的数据入缓存     @Override     public JsonResult syncRecoverableProduct(RecoverableRequest request) {         Integer pageNo = 1;         //获取卖家类型对应的卖家组信息         List<SellerGroupResponse> sellerGroupResponses = querySellerGroupList(pageNo, request.getSellerGroupType());         while (!CollectionUtils.isEmpty(sellerGroupResponses)) {             //1.过滤卖家组的非有效状态信息数据             List<SellerGroupResponse> sellerGroupResponseList = sellerGroupFilter(sellerGroupResponses);             //2.根据卖家组获取卖家支持的可售商品列表             List<SkuSellerRelationDO> sellerRelationDOList = queryAvailableProduct(sellerGroupResponseList);             //3.查询商品信息，并过滤非自营的商品             List<ProductDetailDO> productDetailDOList = queryProductDetailList(sellerRelationDOList);             //4.进行item级别的商品过滤(无需采购和生命周期)             List<ProductDetailDO> itemFilterList = itemFilter(productDetailDOList);             //5.进行组套商品的商品过滤(无需采购和生命周期)             List<ProductDetailDO> suitFilterList = suitFilter(itemFilterList);             //6.将详情的商品sku信息绑定到卖家上             List<ProductSellerRelationBO> productSellerRelationBOList = buildBinding(sellerRelationDOList, suitFilterList);             //7.读取历史的缓存信息，对已经存在的缓存进行diff处理并刷入缓存             diffRecoverableCache(productSellerRelationBOList, sellerGroupResponses);             pageNo++;             sellerGroupResponses = querySellerGroupList(pageNo, request.getSellerGroupType());         }         return JsonResult.buildSuccess();     }     ... }

(3)过滤无效的卖家组与查询卖家组支持的可售商品

@Service public class RecoverableServiceImpl implements RecoverableService {     ...     //对卖家组状态非有效的进行过滤     private List<SellerGroupResponse> sellerGroupFilter(List<SellerGroupResponse> sellerGroupResponses) {         //过滤无效的卖家组信息         return sellerGroupResponses.stream()             .filter(sellerGroupResponse -> SellerGroupStatusEnum.EFFECTIVE_STATUS.getCode().equals(sellerGroupResponse.getSellerGroupStatus()))             .collect(Collectors.toList());     }      //返回卖家组支持的可售商品列表     private List<SkuSellerRelationDO> queryAvailableProduct(List<SellerGroupResponse> sellerGroupResponses) {         if (!CollectionUtils.isEmpty(sellerGroupResponses)) {             //转换为所有的卖家组ID             List<Long> sellerGroupIds = sellerGroupResponses.stream().map(SellerGroupResponse::getSellerGroupId).collect(Collectors.toList());             //分页批量查询卖家组支持的可售商品列表             return productRelationRepository.pageQueryAvailableProduct(sellerGroupIds);         }         return new ArrayList<>();     }     ... }

(4)卖家组支持的可售商品十万级数据量查询实现

一个SkuSellerRelationDO对象大概就50Byte，10万个SkuSellerRelationDO对象大概就是500万Byte=4MB。

@Repository public class ProductRelationRepository {     ...     //分页查询 卖家组ID 可售商品信息     public List<SkuSellerRelationDO> pageQueryAvailableProduct(List<Long> sellerGroupIds) {         //默认集合初始大小为50000，避免扩容次数频繁，一般商品的数量最多也就是几万-几十万         List<SkuSellerRelationDO> sellerRelationAllList = new ArrayList<>(RecoverableConstants.SKU_INIT_NUM);         //一次最大查询10 卖家组ID，多个分页查询,这里做数据切割         List<List<Long>> splitList = DataCuttingUtil.dataCuttingString(sellerGroupIds, RecoverableConstants.SELLER_ID_LIMIT_NUM);         for (List<Long> sellerGroupIdList : splitList) {             List<SkuSellerRelationDO> productDetailDOList = queryAvailableProduct(sellerGroupIdList);             if (!CollectionUtils.isEmpty(productDetailDOList)) {                 sellerRelationAllList.addAll(productDetailDOList);             }         }         return sellerRelationAllList;     }      //根据卖家组ID 批量查询 可售商品信息     public List<SkuSellerRelationDO> queryAvailableProduct(List<Long> sellerGroupIds) {         //获取卖家组对应的可售商品         LambdaQueryWrapper<SkuSellerRelationDO> queryWrapper = Wrappers.lambdaQuery();         queryWrapper.in(SkuSellerRelationDO::getSellerGroupId, sellerGroupIds)             .eq(SkuSellerRelationDO::getRelationType, SkuSellerRelationTypeEnum.RELATION_TYPE_YES.getCode())             .eq(SkuSellerRelationDO::getDelFlag, DelFlagEnum.EFFECTIVE.getCode());         return skuSellerRelationMapper.selectList(queryWrapper);     }     ... }  public class DataCuttingUtil {     //对集合数据进行切割,切割的数量按传入切割大小计算     public static <T> List<List<T>> dataCuttingString(List<T> splitList, Integer splitSize) {         Integer size = splitList.size();         //计算出可以切分出多少个集合对象         int limit = (size + splitSize - 1) / splitSize;         return Stream.iterate(0, n -> n + 1)             .limit(limit)             .parallel()             .map(a -> splitList.stream().skip((long) a * splitSize)             .limit(splitSize)             .parallel()             .collect(Collectors.toList()))             .collect(Collectors.toList()         );     }     ... }

(5)根据卖家组支持的可售商品查询商品信息

@Service public class RecoverableServiceImpl implements RecoverableService {     @Autowired     private ProductRepository productRepository;     ...      //根据卖家组支持的可售商品，查询商品信息并过滤非自营的商品     private List<ProductDetailDO> queryProductDetailList(List<SkuSellerRelationDO> sellerRelationDOList) {         if (!CollectionUtils.isEmpty(sellerRelationDOList)) {             //先获取到对应的skuID列表             Set<String> skuIdList = sellerRelationDOList.stream().map(SkuSellerRelationDO::getSkuId).collect(Collectors.toSet());             //一次最大查询1000skuId，多个分页查询，这里做数据切割             List<ProductDetailDO> productDetailDOList = productRepository.pageQueryProductInfoList(skuIdList);             if (!CollectionUtils.isEmpty(productDetailDOList)) {                 List<ProductDetailDO> productDetailDOS = productDetailDOList.stream()                     .filter(productDetailDO -> productDetailDO.getSellerType().equals(SellerTypeEnum.SELF.getCode()))                     .collect(Collectors.toList());                 return productDetailDOS;             }         }         return new ArrayList<>();     }     ... }  @Repository public class ProductRepository {     ...     //分页查询sku信息     public List<ProductDetailDO> pageQueryProductInfoList(Set<String> skuIdList) {         //默认集合初始大小为50000，避免扩容次数频繁，一般商品的数量最多也就是几万-几十万         List<ProductDetailDO> productDetailAllList = new ArrayList<>(RecoverableConstants.SKU_INIT_NUM);         //一次最大查询1000skuId，多个分页查询，这里做数据切割         List<Set<String>> splitList = DataCuttingUtil.dataCuttingString(skuIdList, RecoverableConstants.SKU_LIMIT_NUM);         for (Set<String> skuIds : splitList) {             List<ProductDetailDO> productDetailDOList = queryProductInfoList(skuIds);             if (!CollectionUtils.isEmpty(productDetailDOList)) {                 productDetailAllList.addAll(productDetailDOList);             }         }         return productDetailAllList;     }      //批量查询商品的详情信息     public List<ProductDetailDO> queryProductInfoList(Set<String> skuId) {         return skuInfoMapper.queryProductInfoList(skuId);     }     ... }  public class DataCuttingUtil {     //对集合数据进行切割,切割的数量按传入切割大小计算     public static <T> List<List<T>> dataCuttingString(List<T> splitList, Integer splitSize) {         Integer size = splitList.size();         //计算出可以切分出多少个集合对象         int limit = (size + splitSize - 1) / splitSize;         return Stream.iterate(0, n -> n + 1)             .limit(limit)             .parallel()             .map(a -> splitList.stream().skip((long) a * splitSize)             .limit(splitSize)             .parallel()             .collect(Collectors.toList()))             .collect(Collectors.toList()         );     }     ... }

(6)对可售商品进行无需采购以及生命周期过滤

@Service public class RecoverableServiceImpl implements RecoverableService {     ...     //进行item级别的商品过滤(无需采购和生命周期)     private List<ProductDetailDO> itemFilter(List<ProductDetailDO> productDetailDOList) {         if (!CollectionUtils.isEmpty(productDetailDOList)) {             //过滤掉无需采购的商品列表             List<ProductDetailDO> productDetailList = filterPurchaseProduct(productDetailDOList);             //商品进行生命周期的查询检查，过滤不符合条件的商品             return filterLifeCycle(productDetailList);         }         return productDetailDOList;     }      //过滤无需采购的item列表信息     private List<ProductDetailDO> filterPurchaseProduct(List<ProductDetailDO> suitItemDOList) {         //获取配置的无需采购的列表         List<ItemProcurementConfigDO> itemProcurementConfigList = productConfigRepository.queryProcurementConfigList();         //空集合判断         if (CollectionUtils.isEmpty(suitItemDOList)) {             return new ArrayList();         }         if (CollectionUtils.isEmpty(itemProcurementConfigList)) {             return suitItemDOList;         }         //集合转map，方便验证是否命中         Map<Integer, ItemProcurementConfigDO> procurementConfigMap = itemProcurementConfigList.stream()             .collect(Collectors.toMap(ItemProcurementConfigDO::getCategoryId, Function.identity()));         //开始过滤无需采购的商品信息         List<ProductDetailDO> productDetailDOList = suitItemDOList.stream()             .filter(productDetail -> !procurementConfigMap.containsKey(productDetail.getCategoryId()))             .collect(Collectors.toList());         //返回过滤后的商品信息         return productDetailDOList;     }      //进行商品生命周期的过滤     private List<ProductDetailDO> filterLifeCycle(List<ProductDetailDO> productDetailList) {         if (!CollectionUtils.isEmpty(productDetailList)) {             //构建调用生命周期的接口入参模型             Set<String> itemIdList = productDetailList.stream().map(ProductDetailDO::getItemId).collect(Collectors.toSet());             List<ItemExpriResultDTO> skuExpriResultDTOS = itemPeriodStageRemote.queryByItemIds(itemIdList);             //集合转map，方便验证是否命中             Map<String, ItemExpriResultDTO> itemExpriResultMap = skuExpriResultDTOS.stream().collect(Collectors.toMap(ItemExpriResultDTO::getItemId, Function.identity()));             //过滤不符合条件的商品             List<ProductDetailDO> productDetailDOList = productDetailList.stream().filter(productDetail -> {                 //没有命中不保留                 if (!itemExpriResultMap.containsKey(productDetail.getItemId())) {                     return false;                 }                 ItemExpriResultDTO itemExpriResultDTO = itemExpriResultMap.get(productDetail.getItemId());                 //可采的状态返回true                 return itemExpriResultDTO.getPurchaseStatus().equals(ItemExpriEnum.RECOVERABLE_STATUS_YES.getCode());             }).collect(Collectors.toList());             //返回过滤后的商品信息             return productDetailDOList;         }         return productDetailList;     }     ... }

(7)对卖家组支持的可售商品进行过滤组套商品

@Service public class RecoverableServiceImpl implements RecoverableService {     ...     //进行组套商品的商品过滤(无需采购和生命周期)     private List<ProductDetailDO> suitFilter(List<ProductDetailDO> productDetailList) {         if (!CollectionUtils.isEmpty(productDetailList)) {             //1.查询哪些是组套商品，并且反向寻找到组套商品归属的item信息             List<ProductDetailDO> suitItemDOList = querySuitList(productDetailList);             //2.过滤掉无需采购的商品列表             List<ProductDetailDO> productDetailDOList = filterSuitPurchaseProduct(suitItemDOList);             //3.商品进行生命周期的查询检查，过滤不符合条件的商品             return filterSuitLifeCycle(productDetailDOList);         }         return productDetailList;     }      //通过商品明细，查询出哪些是组套商品，并输出对应的归属item数据结构     private List<ProductDetailDO> querySuitList(List<ProductDetailDO> productDetailDOList) {         //根据skuId批量查询是否组套商品         List<StackSkuRelationDO> stackSkuRelationAllList = queryStackSkuListByIds(productDetailDOList);         //没有组套商品的直接返回         if (CollectionUtils.isEmpty(stackSkuRelationAllList)) {             return productDetailDOList;         }         //返回组套商品的详情集合信息(包含item信息)         List<ProductDetailDO> itemProductList = queryProductInfoList(stackSkuRelationAllList);         //将组套商品绑定到上级对应商品下         return buildSuitBinding(itemProductList, productDetailDOList, stackSkuRelationAllList);     }      //根据skuId批量查询是否组套商品     private List<StackSkuRelationDO> queryStackSkuListByIds(List<ProductDetailDO> productDetailDOList) {         //先获取到对应的skuID列表         Set<String> skuIdList = productDetailDOList.stream().map(ProductDetailDO::getSkuId).collect(Collectors.toSet());         return productRelationRepository.pageQueryStackSkuListByIds(skuIdList);     }      //获取组套商品的详情集合信息     private List<ProductDetailDO> queryProductInfoList(List<StackSkuRelationDO> stackSkuRelationAllList) {         //获取组套商品的sku列表，通过sku列表联合查询得到对应的item信息         Set<String> stackSkuIdList = stackSkuRelationAllList.stream().map(StackSkuRelationDO::getStackSkuId).collect(Collectors.toSet());         //查询组套商品详情集合信息         return productRepository.pageQueryProductInfoList(stackSkuIdList);     }      //将组套商品绑定上     private List<ProductDetailDO> buildSuitBinding(List<ProductDetailDO> itemProductList, List<ProductDetailDO> productDetailDOList, List<StackSkuRelationDO> stackSkuRelationAllList) {         List<ProductDetailDO> productSellerRelationBOList = recoverableConverter.converterProductList(productDetailDOList);         //sku对应的组套商品详情(对应组套商品的stackSkuId)         Map<String, ProductDetailDO> productDetailMap = itemProductList.stream().collect(Collectors.toMap(ProductDetailDO::getSkuId, Function.identity()));         //组套的商品集合(一个商品下多个物料sku组装而成)         Map<String, List<StackSkuRelationDO>> stackSkuRelationMap = stackSkuRelationAllList.stream().collect(Collectors.groupingBy(StackSkuRelationDO::getSkuId));         for (ProductDetailDO productDetailDO : productSellerRelationBOList) {             //命中到了对应的组套商品             if (stackSkuRelationMap.containsKey(productDetailDO.getSkuId())) {                 List<ProductDetailDO> productDetailDOS = new ArrayList<>();                 //标记为组套商品                 productDetailDO.setProductType(2);                 //同时存储对应的组套商品详情信息                 List<StackSkuRelationDO> stackSkuRelationList = stackSkuRelationMap.get(productDetailDO.getSkuId());                 for (StackSkuRelationDO stackSkuRelationDO : stackSkuRelationList) {                     if (productDetailMap.containsKey(stackSkuRelationDO.getStackSkuId())) {                         ProductDetailDO productDetail = productDetailMap.get(stackSkuRelationDO.getStackSkuId());                         productDetailDOS.add(productDetail);                     }                 }                 productDetailDO.setProductDetailList(productDetailDOS);             }         }         return productSellerRelationBOList;     }      //过滤无需采购的组套商品     private List<ProductDetailDO> filterSuitPurchaseProduct(List<ProductDetailDO> suitItemDOList) {         //获取配置的无需采购的列表         List<ItemProcurementConfigDO> itemProcurementConfigList = productConfigRepository.queryProcurementConfigList();         //空集合判断         if (CollectionUtils.isEmpty(suitItemDOList)) {             return new ArrayList();         }         if (CollectionUtils.isEmpty(itemProcurementConfigList)) {             return suitItemDOList;         }         //集合转map，方便验证是否命中         Map<Integer, ItemProcurementConfigDO> procurementConfigMap = itemProcurementConfigList.stream().collect(Collectors.toMap(ItemProcurementConfigDO::getCategoryId, Function.identity()));         List<ProductDetailDO> productDetailDOList = new ArrayList<>(suitItemDOList.size());         for (ProductDetailDO productDetailDO : suitItemDOList) {             if (productDetailDO.getProductType().equals(2)) {                 List<ProductDetailDO> productDetailList = productDetailDO.getProductDetailList();                 //组套商品有商品不满足条件                 if (checkSuitPurchaseProduct(productDetailList, procurementConfigMap)) {                     continue;                 }             }             productDetailDOList.add(productDetailDO);         }         return productDetailDOList;     }      //进行组套商品生命周期的过滤     private List<ProductDetailDO> filterSuitLifeCycle(List<ProductDetailDO> productDetailList) {         List<ProductDetailDO> productDetailDOAllList = new ArrayList<>(productDetailList.size());         if (!CollectionUtils.isEmpty(productDetailList)) {             //查询返回生命周期的数据模型             Map<String, ItemExpriResultDTO> itemExpriResultMap = queryItemExpriMap(productDetailList);             for (ProductDetailDO productDetailDO : productDetailList) {                 if (productDetailDO.getProductType().equals(2)) {                     List<ProductDetailDO> productDetailDOList = productDetailDO.getProductDetailList();                     if (checkSuitLifeCycle(productDetailDOList, itemExpriResultMap)) {                         continue;                     }                 }                 productDetailDOAllList.add(productDetailDO);             }         }         return productDetailDOAllList;     }     ... }

(8)将过滤后的商品数据与卖家组进行关联

@Service public class RecoverableServiceImpl implements RecoverableService {     ...     //同步可采的数据入缓存     @Override     public JsonResult syncRecoverableProduct(RecoverableRequest request) {         Integer pageNo = 1;         //获取卖家类型对应的卖家组信息         List<SellerGroupResponse> sellerGroupResponses = querySellerGroupList(pageNo, request.getSellerGroupType());         while (!CollectionUtils.isEmpty(sellerGroupResponses)) {             //1.过滤卖家组的非有效状态信息数据             List<SellerGroupResponse> sellerGroupResponseList = sellerGroupFilter(sellerGroupResponses);             //2.根据卖家组获取卖家支持的可售商品列表             List<SkuSellerRelationDO> sellerRelationDOList = queryAvailableProduct(sellerGroupResponseList);             //3.查询商品信息，并过滤非自营的商品             List<ProductDetailDO> productDetailDOList = queryProductDetailList(sellerRelationDOList);             //4.进行item级别的商品过滤(无需采购和生命周期)             List<ProductDetailDO> itemFilterList = itemFilter(productDetailDOList);             //5.进行组套商品的商品过滤(无需采购和生命周期)             List<ProductDetailDO> suitFilterList = suitFilter(itemFilterList);             //6.将详情的商品sku信息绑定到卖家上             List<ProductSellerRelationBO> productSellerRelationBOList = buildBinding(sellerRelationDOList, suitFilterList);             //7.读取历史的缓存信息，对已经存在的缓存进行diff处理并刷入缓存             diffRecoverableCache(productSellerRelationBOList, sellerGroupResponses);             pageNo++;             sellerGroupResponses = querySellerGroupList(pageNo, request.getSellerGroupType());         }         return JsonResult.buildSuccess();     }      //将过滤后的商品明细绑定到卖家组上     private List<ProductSellerRelationBO> buildBinding(List<SkuSellerRelationDO> sellerRelationDOList, List<ProductDetailDO> productDetailDOList) {         //先转换集合为map，key为商品的skuId标识         Map<String, ProductDetailDO> skuInfoDOMap = productDetailDOList.stream().collect(Collectors.toMap(ProductDetailDO::getSkuId, Function.identity()));         //按卖家组ID进行分组，把下属的商品合并到一个上         Map<Long, List<SkuSellerRelationDO>> skuSellerRelationMap = sellerRelationDOList.stream().collect(Collectors.groupingBy(SkuSellerRelationDO::getSellerGroupId));         //返回的绑定卖家组和商品明细的集合对象         List<ProductSellerRelationBO> sellerRelationBOList = new ArrayList<>(sellerRelationDOList.size());          //遍历卖家和商品关系集合，开始填充商品sku信息绑定到卖家组上         for (Map.Entry<Long, List<SkuSellerRelationDO>> entry : skuSellerRelationMap.entrySet()) {             List<SkuSellerRelationDO> skuSellerRelationDOS = entry.getValue();             Long sellerGroupId = entry.getKey();             //循环绑定卖家组下的商品关系             ProductSellerRelationBO productSellerRelationBO = new ProductSellerRelationBO();             productSellerRelationBO.setSellerId(sellerGroupId);             List<ProductDetailDO> productDetailList = new ArrayList<>();             //遍历卖家组下的可售商品列表             for (SkuSellerRelationDO sellerRelationDO : skuSellerRelationDOS) {                 //查询的数据集合中 存在这个商品数据                 if (skuInfoDOMap.containsKey(sellerRelationDO.getSkuId())) {                     ProductDetailDO productDetailDO = skuInfoDOMap.get(sellerRelationDO.getSkuId());                     //绑定数据到卖家组上                     productDetailList.add(productDetailDO);                 }             }             productSellerRelationBO.setProductDetailList(productDetailList);             sellerRelationBOList.add(productSellerRelationBO);         }         return sellerRelationBOList;     }     ... }

(9)读取缓存与刷入缓存的逻辑

@Service public class RecoverableServiceImpl implements RecoverableService {     @Autowired     private RedisReadWriteManager redisReadWriteManager;     ...      //对已经缓存的历史数据进行diff处理，处理缓存变更     private void diffRecoverableCache(List<ProductSellerRelationBO> productSellerRelationBOList, List<SellerGroupResponse> sellerGroupResponses) {         //1.获取卖家组ID集合         Set<Long> sellerGroupIdList = sellerGroupResponses.stream().map(SellerGroupResponse::getSellerGroupId).collect(Collectors.toSet());         //2.数据差集比较，并刷入缓存差异信息         diffCache(sellerGroupIdList, productSellerRelationBOList);     }      //开始进行数据差集的处理     private void diffCache(Set<Long> sellerIdList, List<ProductSellerRelationBO> productSellerRelationBOList) {         //1.批量查询缓存         Map<Long, List<String>> redisSetMap = redisReadWriteManager.getRedisSortedSet(sellerIdList, AbstractRedisKeyConstants::getSellerTypePurchaseSkuZsetKey);         //转换缓存的值为具体的对象         Map<Long, Map<String, ProductDetailDO>> productSellerRelationBOMap = redisManagerRepository.converterProductSellerCache(redisSetMap);         //进行数据差集处理         Map<String, RedisSortedSetCache> diffSortedSetCache = redisManagerRepository.diffProduct(productSellerRelationBOList, productSellerRelationBOMap, AbstractRedisKeyConstants::getSellerTypePurchaseSkuZsetKey);         //执行数据缓存更新         redisReadWriteManager.flushIncrSortedSetMap(diffSortedSetCache);     }     ... }  @Service public class RedisReadWriteManager {     ...     //批量获取Sorted Set     public <T> Map<T, List<String>> getRedisSortedSet(Collection<T> keys, Function<T, String> getRedisKeyFunction) {         if (CollectionUtils.isEmpty(keys)) {             return Maps.newHashMap();         }         Map<T, List<String>> responseMap = Maps.newHashMap();         for (T key : keys) {             String redisKey = getRedisKeyFunction.apply(key);             responseMap.put(key, allRedisSortedSet(redisKey));         }         return responseMap;     }      //获取Sorted Set的所有数据     private List<String> allRedisSortedSet(String redisKey) {         Set<String> strings = redisCache.zrangeByScore(redisKey, 0L, Long.MAX_VALUE, 0L, Long.MAX_VALUE);         List<String> sortedList = CollectionUtils.isEmpty(strings) ? new ArrayList<>() : new LinkedList<>(strings);         return sortedList;     }      //刷新有序缓存     public void flushIncrSortedSetMap(Map<String, RedisSortedSetCache> sortedSetSourceMap) {         for (Map.Entry<String, RedisSortedSetCache> entry : sortedSetSourceMap.entrySet()) {             //获取到缓存的key标志信息             String key = entry.getKey();             //缓存操作对象，每个卖家缓存一份             RedisSortedSetCache sortedSetSource = entry.getValue();             if (sortedSetSource.getDeleteKey()) {                 redisCache.delete(key);                 continue;             }             if (MapUtils.isNotEmpty(sortedSetSource.getAddMap())) {                 addSortedSet(sortedSetSource.getAddMap(), key);             }             if (!CollectionUtils.isEmpty(sortedSetSource.getDeleteMemberSet())) {                 removeSortedSet(key, sortedSetSource.getDeleteMemberSet());             }         }     }      //添加Sorted Set     public void addSortedSet(Map<String, Double> addMap, String redisKey) {         if (MapUtils.isEmpty(addMap)) {             return;         }         for (Map.Entry<String, Double> entry : addMap.entrySet()) {             String product = entry.getKey();             Double score = entry.getValue();             redisCache.zadd(redisKey, product, score);         }     }      //删除Sorted Set     public void removeSortedSet(String redisKey, Set<String> memberSet) {         redisCache.zremove(redisKey, memberSet.toArray(new String[]{}));     }     ... }

(10)卖家组支持的可采商品与缓存的diff逻辑

@Repository public class RedisManagerRepository {     @Autowired     private SegmentIDGen segmentIDGen;     ...      //将缓存的数据转换为实体对象     public Map<Long, Map<String, ProductDetailDO>> converterProductSellerCache(Map<Long, List<String>> redisSetMap) {         Map<Long, Map<String, ProductDetailDO>> productSellerRelationBOMap = new HashMap<>(redisSetMap.size());         if (!CollectionUtils.isEmpty(redisSetMap)) {             for (Map.Entry<Long, List<String>> entry : redisSetMap.entrySet()) {                 List<String> productSellerList = entry.getValue();                 Map<String, ProductDetailDO> productDetailMap = new HashMap<>(productSellerList.size());                 for (String content : productSellerList) {                     ProductDetailDO productDetailDO = JSONObject.parseObject(content, ProductDetailDO.class);                     productDetailMap.put(productDetailDO.getSkuId(), productDetailDO);                 }                 productSellerRelationBOMap.put(entry.getKey(), productDetailMap);             }         }         return productSellerRelationBOMap;     }      //对缓存差集的数据进行处理     public <T> Map<String, RedisSortedSetCache> diffProduct(List<ProductSellerRelationBO> productSellerRelationBOList,             Map<Long, Map<String, ProductDetailDO>> productSellerCacheMap, Function<Long, String> getRedisKeyFunction) {         Map<String, RedisSortedSetCache> redisSortedSetCacheMap = new HashMap<>();         //1.处理缓存中需要新增的数据，删除数据         Map<Long, ProductSellerRelationBO> productSellerRelationResidueMap = diffCacheAddOrDelete(productSellerRelationBOList, productSellerCacheMap, redisSortedSetCacheMap, getRedisKeyFunction);         //2.处理缓存中不存在的卖家数据，新增处理         diffAddSellerCache(productSellerRelationResidueMap, redisSortedSetCacheMap, getRedisKeyFunction);         //3.处理缓存中存在的卖家数据，结果不存在，删除处理         diffDeleteSellerCache(productSellerCacheMap, redisSortedSetCacheMap, getRedisKeyFunction);         return redisSortedSetCacheMap;     }      //处理缓存中需要新增的数据，删除数据     private <T> Map<Long, ProductSellerRelationBO> diffCacheAddOrDelete(List<ProductSellerRelationBO> productSellerRelationBOList,              Map<Long, Map<String, ProductDetailDO>> productSellerCacheMap, Map<String, RedisSortedSetCache> redisSortedSetCacheMap, Function<Long, String> getRedisKeyFunction) {         Map<Long, ProductSellerRelationBO> productSellerRelationResidueMap = new HashMap<>(productSellerRelationBOList.size());         for (ProductSellerRelationBO productSellerRelation : productSellerRelationBOList) {             RedisSortedSetCache redisSortedSetCache = new RedisSortedSetCache();             Long sellerId = productSellerRelation.getSellerId();              String redisKey = getRedisKeyFunction.apply(sellerId);             //命中了缓存的数据，开始进行差集处理             if (productSellerCacheMap.containsKey(sellerId)) {                 //获取当前这个卖家下的缓存商品信息，key为商品sku                 Map<String, ProductDetailDO> productDetailDOMap = productSellerCacheMap.get(sellerId);                 //卖家的处理后的可售商品列表                 List<ProductDetailDO> productDetailList = productSellerRelation.getProductDetailList();                  //处理返回差异的数据结果，需新增或者删除的数据集合                 for (ProductDetailDO productDetailDO : productDetailList) {                     //命中了则说明无差异，不处理，从集合中移除                     if (!CollectionUtils.isEmpty(productDetailDOMap) && productDetailDOMap.containsKey(productDetailDO.getSkuId())) {                         productDetailDOMap.remove(productDetailDO.getSkuId());                         continue;                     }                     //未命中，说明这个数据缓存中不存在，做新增处理                     redisSortedSetCache.getAddMap().put(JSONObject.toJSON(productDetailDO).toString(), getSortedSetScore(redisKey));                 }                 //遍历处理完成之后，缓存中还有多余的对象都属于无效数据，需要删除                 if (!CollectionUtils.isEmpty(productDetailDOMap)) {                     for (Map.Entry<String, ProductDetailDO> entry : productDetailDOMap.entrySet()) {                         redisSortedSetCache.getDeleteMemberSet().add(JSONObject.toJSON(entry.getValue()).toString());                     }                 }                 //设置到需要处理得缓存对象中                 redisSortedSetCacheMap.put(redisKey, redisSortedSetCache);                  //删除处理掉的缓存对象                 productSellerCacheMap.remove(sellerId);             } else {                 //未命中缓存的 都是新增数据                 productSellerRelationResidueMap.put(sellerId, productSellerRelation);             }         }         return productSellerRelationResidueMap;     }      //处理缓存中不存在的卖家数据，新增处理     private void diffAddSellerCache(Map<Long, ProductSellerRelationBO> productSellerRelationMap,              Map<String, RedisSortedSetCache> redisSortedSetCacheMap, Function<Long, String> getRedisKeyFunction) {         Iterator<Map.Entry<Long, ProductSellerRelationBO>> iterator = productSellerRelationMap.entrySet().iterator();         //对处理缓存差集后，还剩余的未处理数据做新增处理         while (iterator.hasNext()) {             Map.Entry<Long, ProductSellerRelationBO> entrys = iterator.next();             ProductSellerRelationBO productSellerRelation = entrys.getValue();             RedisSortedSetCache redisSortedSetCache = new RedisSortedSetCache();             Long key = entrys.getKey();             String redisKey = getRedisKeyFunction.apply(key);              //卖家的处理后的可售商品列表             List<ProductDetailDO> productDetailList = productSellerRelation.getProductDetailList();             for (ProductDetailDO productDetailDO : productDetailList) {                 redisSortedSetCache.getAddMap().put(JSONObject.toJSON(productDetailDO).toString(), getSortedSetScore(redisKey));             }             //设置到需要处理得缓存对象中             redisSortedSetCacheMap.put(redisKey, redisSortedSetCache);         }     }      //处理缓存中存在的卖家数据，结果不存在，删除处理     private void diffDeleteSellerCache(Map<Long, Map<String, ProductDetailDO>> productSellerCacheMap,             Map<String, RedisSortedSetCache> redisSortedSetCacheMap, Function<Long, String> getRedisKeyFunction) {         //当可售的列表中，不存在缓存已经存在的数据列表，说明缓存已经无效，需要删除该对应的key下的缓存信息         if (!CollectionUtils.isEmpty(productSellerCacheMap)) {             for (Map.Entry<Long, Map<String, ProductDetailDO>> entry : productSellerCacheMap.entrySet()) {                 Long key = entry.getKey();                 Map<String, ProductDetailDO> value = entry.getValue();                 if (CollectionUtils.isEmpty(value)) {                     continue;                 }                 String redisKey = getRedisKeyFunction.apply(key);                 RedisSortedSetCache redisSortedSetCache = new RedisSortedSetCache();                 redisSortedSetCache.setDeleteKey(Boolean.TRUE);                 //设置到需要处理得缓存对象中                 redisSortedSetCacheMap.put(redisKey, redisSortedSetCache);             }         }     }     ...      //新增缓存时需要获取每个缓存key存储的权重值     public Double getSortedSetScore(String cacheKey) {         //新增可采商品缓存时基于db的分段发号         Long autoNo = segmentIDGen.genNewNo(cacheKey);         return Double.valueOf(autoNo);     } }

(11)基于DB的分段发号器组件

一.号段内存缓冲组件SegmentBuffer

//号段内存缓冲组件 @Data @Accessors(chain = true) public class SegmentBuffer {     //线程是否在运行中     private final AtomicBoolean threadRunning;     private final ReadWriteLock lock;     private String bizTag;     //双buffer     private Segment[] segments;     //当前的使用的segment的index     private volatile int currentPos;     //下一个segment是否处于可切换状态     private volatile boolean nextReady;     //是否初始化完成     private volatile boolean initOk;     private volatile int step;     private volatile int minStep;     private volatile long updateTimestamp;      public SegmentBuffer() {         segments = new Segment[]{new Segment(this), new Segment(this)};         currentPos = 0;         nextReady = false;         initOk = false;         threadRunning = new AtomicBoolean(false);         lock = new ReentrantReadWriteLock();     }      public Segment getCurrent() {         return segments[currentPos];     }      public Lock rLock() {         return lock.readLock();     }      public Lock wLock() {         return lock.writeLock();     }      public int nextPos() {         return (currentPos + 1) % 2;     }      public void switchPos() {         currentPos = nextPos();     }     ... }

@Component public class SegmentIDCache implements ApplicationListener<ContextRefreshedEvent> {     private final Map<String, SegmentBuffer> cache = new ConcurrentHashMap<>();      @Resource     private LeafAllocNoMapper leafAllocNoMapper;      private volatile boolean initOk = false;      @Override     public void onApplicationEvent(ContextRefreshedEvent event) {         checkAndInit();     }      //初始化数据     private void checkAndInit() {         if (!initOk) {             synchronized (this) {                 if (!initOk) {                     log.info("Init ...");                     //确保加载到kv后才初始化成功                     updateCacheFromDb();                     initOk = true;                     log.info("Init Ok ...");                 }             }         }     }      public boolean isInitOk() {         return initOk;     }      public boolean containsKey(String bizCode) {         checkAndInit();         return cache.containsKey(bizCode);     }      public SegmentBuffer getValue(String bizCode) {         checkAndInit();         return cache.get(bizCode);     }      //单个初始化加载     public void updateCacheFromDb(String bizCode) {         log.info("update cache from db");         try {             LeadAllocDO dbBizCodes = leafAllocNoMapper.findByBizTag(bizCode);             if (Objects.isNull(dbBizCodes)) {                 return;             }             SegmentBuffer buffer = new SegmentBuffer();             buffer.setBizTag(bizCode);             Segment segment = buffer.getCurrent();             segment.setValue(new AtomicLong(0));             segment.setMax(0);             segment.setStep(0);             cache.put(bizCode, buffer);             log.info("Add bizCode {} from db to IdCache, SegmentBuffer {}", bizCode, buffer);         } catch (Exception e) {             log.warn("update cache from db exception", e);         } finally {             log.info("updateCacheFromDb,cost:{}", 0);         }     }      //更新缓存key     private void updateCacheFromDb() {         log.info("update cache from db");         try {             List<String> dbBizCodes = leafAllocNoMapper.listAllBizTag();             if (CollectionUtils.isEmpty(dbBizCodes)) {                 return;             }             List<String> cacheBiz = new ArrayList<>(cache.keySet());             Set<String> insertBizSet = new HashSet<>(dbBizCodes);             Set<String> removeBizSet = new HashSet<>(cacheBiz);             //db中新加的tags灌进cache             for (String tmp : cacheBiz) {                 insertBizSet.remove(tmp);             }             for (String bizCode : insertBizSet) {                 SegmentBuffer buffer = new SegmentBuffer();                 buffer.setBizTag(bizCode);                 Segment segment = buffer.getCurrent();                 segment.setValue(new AtomicLong(0));                 segment.setMax(0);                 segment.setStep(0);                 cache.put(bizCode, buffer);                 log.info("Add bizCode {} from db to IdCache, SegmentBuffer {}", bizCode, buffer);             }             for (String tmp : dbBizCodes) {                 removeBizSet.remove(tmp);             }             for (String tag : removeBizSet) {                 cache.remove(tag);                 log.info("Remove tag {} from IdCache", tag);             }         } catch (Exception e) {             log.warn("update cache from db exception", e);         } finally {             log.info("updateCacheFromDb,cost:{}", 0);         }     } }

二.号段ID生成器组件SegmentIDGen

//号段ID生成器组件 @Service public class SegmentIDGenImpl implements SegmentIDGen {     //下一次异步更新比率因子     public static final double NEXT_INIT_FACTOR = 0.9;      //最大步长不超过100,0000     private static final int MAX_STEP = 1000000;      //默认一个Segment会维持的时间为15分钟     //如果在15分钟内Segment就消耗完了，则步长要扩容一倍，但不能超过MAX_STEP     //如果在超过15*2=30分钟才将Segment消耗完，则步长要缩容一倍，但不能低于MIN_STEP，MIN_STEP的值为数据库中初始的step字段值     private static final long SEGMENT_DURATION = 15 * 60 * 1000L;      //更新因子     //更新因子=2时，表示成倍扩容或者折半缩容     private static final int EXPAND_FACTOR = 2;      private final ExecutorService threadPoolExecutor = new ThreadPoolExecutor(1, Integer.MAX_VALUE, 60L, TimeUnit.SECONDS, new SynchronousQueue<>(), new UpdateThreadFactory());      @Autowired     private LeafAllocNoRepository leafAllocNoRepository;      @Resource     private SegmentIDCache cache;      //生成新的ID     @Override     public Long genNewNo(String bizTag) {         if (!cache.isInitOk()) {             throw new RuntimeException("not init");         }         //如果没有，此时需要初始化一个         if (!cache.containsKey(bizTag)) {             leafAllocNoRepository.insertLeadAlloc(bizTag);             cache.updateCacheFromDb(bizTag);         }         SegmentBuffer buffer = cache.getValue(bizTag);         if (!buffer.isInitOk()) {             synchronized (buffer) {                 if (!buffer.isInitOk()) {                     try {                         updateSegmentFromDb(bizTag, buffer.getCurrent());                         log.info("Init buffer. Update leafkey {} {} from db", bizTag, buffer.getCurrent());                         buffer.setInitOk(true);                     } catch (Exception e) {                         log.warn("Init buffer {} exception", buffer.getCurrent(), e);                         throw new RuntimeException("init error:" + bizTag);                     }                 }             }         }         return getIdFromSegmentBuffer(buffer);     }      //从segment缓冲中获取id     private Long getIdFromSegmentBuffer(SegmentBuffer buffer) {         while (true) {             buffer.rLock().lock();             try {                 final Segment segment = buffer.getCurrent();                 if (!buffer.isNextReady() && (segment.getIdle() < NEXT_INIT_FACTOR * segment.getStep())                         && buffer.getThreadRunning().compareAndSet(false, true)) {                     asyncUpdate(buffer);                 }                 long value = segment.getValue().getAndIncrement();                 if (value < segment.getMax()) {                     return value;                 }             } finally {                 buffer.rLock().unlock();             }              //获取的value，大于max，则等待其他线程更新完毕。最多等待100s             waitAndSleep(buffer);             buffer.wLock().lock();             try {                 final Segment segment = buffer.getCurrent();                 long value = segment.getValue().getAndIncrement();                 if (value < segment.getMax()) {                     return value;                 }                 if (buffer.isNextReady()) {                     buffer.switchPos();                     buffer.setNextReady(false);                 } else {                     log.error("Both two segments in {} are not ready!", buffer);                     throw new RuntimeException("next not ready");                 }             } finally {                 buffer.wLock().unlock();             }         }     }      //异步更新初始化     private void asyncUpdate(SegmentBuffer buffer) {         long submitTime = System.currentTimeMillis();         threadPoolExecutor.execute(() -> {             long executeTime = System.currentTimeMillis();             Segment next = buffer.getSegments()[buffer.nextPos()];             boolean updateOk = false;             try {                 updateSegmentFromDb(buffer.getBizTag(), next);                 updateOk = true;             } catch (Exception e) {                 log.warn("{} updateSegmentFromDb exception", buffer.getBizTag(), e);             } finally {                 long finishTime = System.currentTimeMillis();                 log.info("update segment {} from db {}。st:{}, et:{}, ft:{}", buffer.getBizTag(), next, submitTime, executeTime, finishTime);                 if (updateOk) {                     buffer.wLock().lock();                     buffer.setNextReady(true);                     buffer.getThreadRunning().set(false);                     buffer.wLock().unlock();                 } else {                     buffer.getThreadRunning().set(false);                 }             }         });     }      //自旋10000次之后，睡眠10毫秒     private void waitAndSleep(SegmentBuffer buffer) {         int roll = 0;         while (buffer.getThreadRunning().get()) {             roll += 1;             if (roll > 10000) {                 try {                     TimeUnit.MILLISECONDS.sleep(10);                     break;                 } catch (InterruptedException e) {                     log.warn("Thread {} Interrupted", Thread.currentThread().getName());                     break;                 }             }         }     }      //从db中更新号段     public void updateSegmentFromDb(String bizTag, Segment segment) {         SegmentBuffer buffer = segment.getBuffer();         LeadAllocDO leadAllocDO;         if (!buffer.isInitOk()) {             leadAllocDO = leafAllocNoRepository.updateMaxIdAndGet(bizTag);             buffer.setStep(leadAllocDO.getStep());             buffer.setMinStep(leadAllocDO.getStep());         } else if (buffer.getUpdateTimestamp() == 0) {             leadAllocDO = leafAllocNoRepository.updateMaxIdAndGet(bizTag);             buffer.setUpdateTimestamp(System.currentTimeMillis());             buffer.setStep(leadAllocDO.getStep());             buffer.setMinStep(leadAllocDO.getStep());         } else {             int nextStep = calculateNextStep(bizTag, buffer);             leadAllocDO = leafAllocNoRepository.updateMaxIdByDynamicStepAndGet(bizTag, nextStep);             buffer.setUpdateTimestamp(System.currentTimeMillis());             buffer.setStep(nextStep);             buffer.setMinStep(leadAllocDO.getStep());         }         // must set value before set max         long value = leadAllocDO.getMaxId() - buffer.getStep();         segment.getValue().set(value);         segment.setMax(leadAllocDO.getMaxId());         segment.setStep(buffer.getStep());         log.info("updateSegmentFromDb, bizTag: {}, cost:0, segment:{}", bizTag, segment);     }      //计算新的步长     private int calculateNextStep(String bizCode, SegmentBuffer buffer) {         long duration = System.currentTimeMillis() - buffer.getUpdateTimestamp();         int nextStep = buffer.getStep();         if (duration < SEGMENT_DURATION) {             nextStep = Math.min(MAX_STEP, nextStep * EXPAND_FACTOR);         } else if (duration < SEGMENT_DURATION * EXPAND_FACTOR) {             // do nothing with nextStep         } else {             nextStep = Math.max(buffer.getMinStep(), nextStep / EXPAND_FACTOR);         }         log.info("leafKey[{}], step[{}], duration[{}mins], nextStep[{}]", bizCode, buffer.getStep(), String.format("%.2f", ((double) duration / (1000 * 60))), nextStep);         return nextStep;     }      public static class UpdateThreadFactory implements ThreadFactory {         private static int threadInitNumber = 0;          private static synchronized int nextThreadNum() {             return threadInitNumber++;         }          @Override         public Thread newThread(Runnable r) {             return new Thread(r, "Thread-Segment-Update-" + nextThreadNum());         }     } }

3.定时同步可补商品

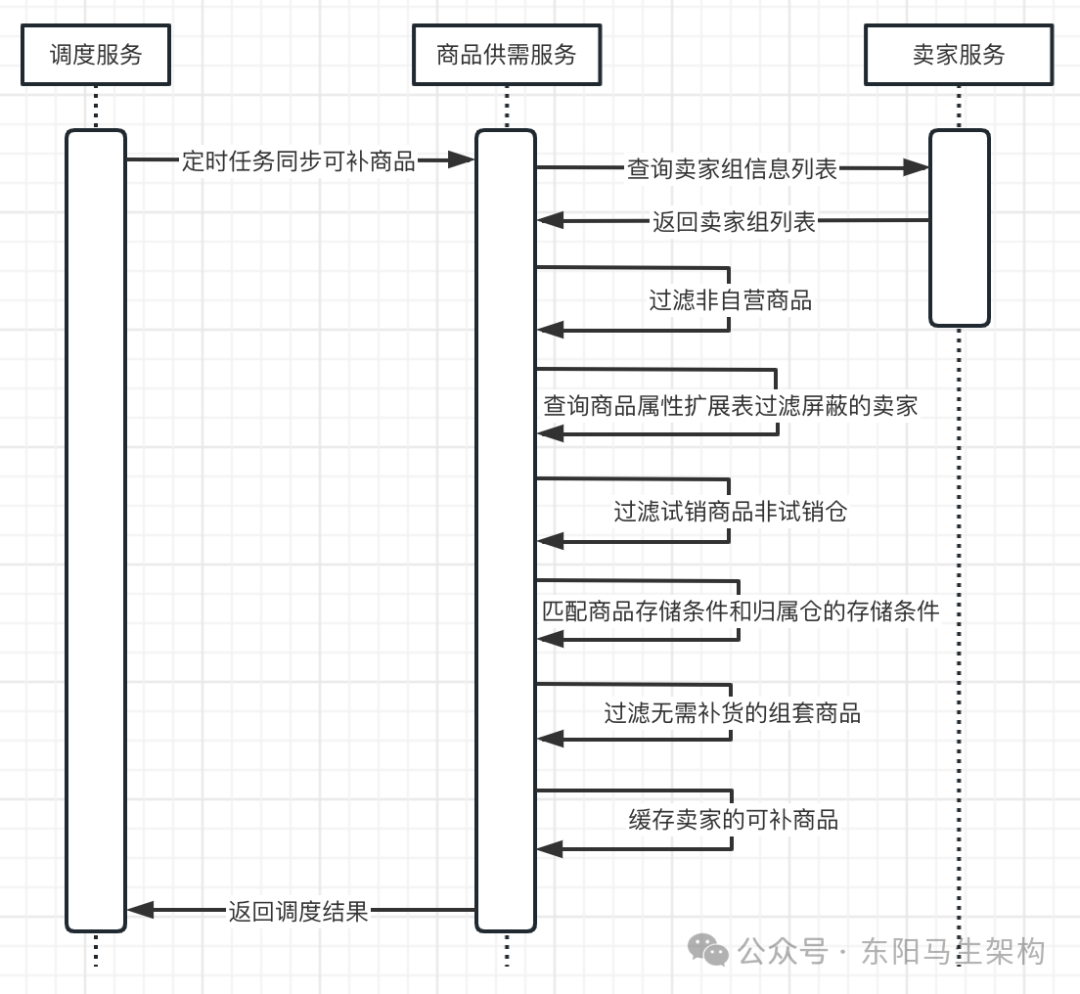

(1)时序图

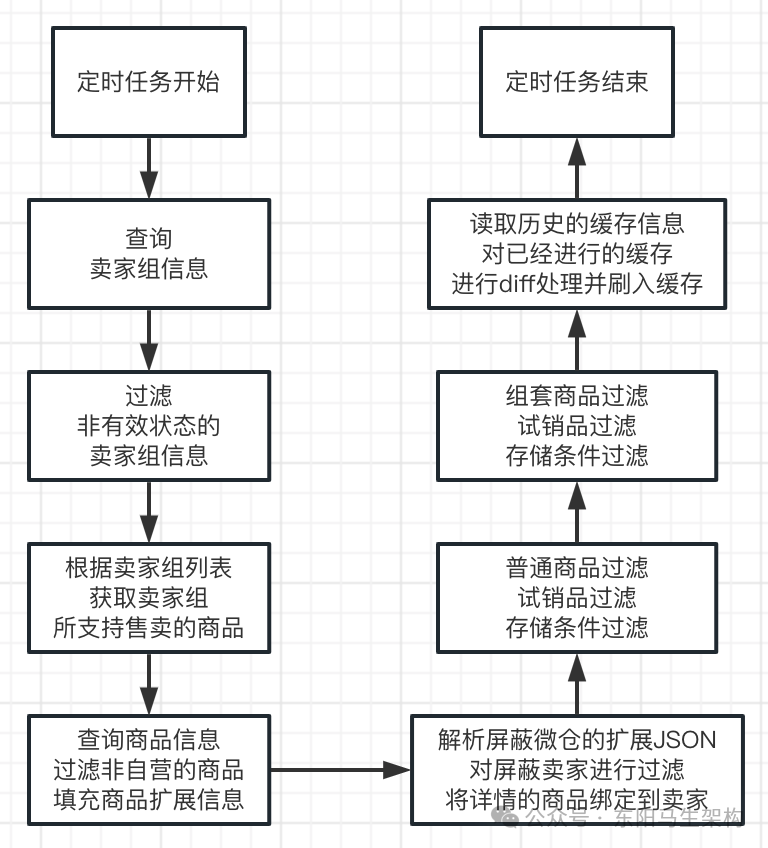

(2)流程图

(3)代码实现

(1)时序图
